| Brand |
Hikvision |
| Model |
Hikvision DS-2CD1347G2H-LIU |
| Usage |
Outdoor |
| Type |
IP Camera |
| Camera Type |
Fixed |
| Mega Pixels |
4.0MP |
| Max. Camera Resolution |
2560 x 1440 |
| Image Sensor |
1/3 Inch Scan CMOS |
| Resolution |
2560 x 1440 |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| Lens |
2.8mm |
| Lens Mount |
M12 |
| Focal Length |
2.8mm |
| PTZ |
No |
| Viewing Angle |
96° (Horizontal), 52° (Vertical), 114° (Diagonal) |
| General Function |
Heartbeat, anti-banding, mirror, password protection, password reset by email |
| Dual-Stream |
Yes |
| Frame Rate |
50 Hz: 20 fps, 25 fps, 60 Hz: 20 fps, 24 fps |
| Digital Noise Reduction (DNR) |
3D DNR |
| Wide Dynamic Range (WDR) |
120 dB |
| Interface(s) |
1 x RJ45 10 M/100 M self-adaptive Ethernet port |
| Wi-Fi |
No |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Password Protection |
Yes |
| Watermark |
Yes |
| Motion Detection |
Yes |
| Human Detection |
Yes |
| Dust Protection |
Yes |
| Water Protection |
Yes |
| Simultaneous Live View |
Up to 6 channels |
| Scanning System |
Progressive |
| Video Type |
H.265+/ H.265/ H.264+/ H.264 |
| Wavelength |
850 nm |
| Mic & Speaker |
Only Mic |
| Audio Communication |
No |
| Input Trigger |
Motion detection |
| Ingress Protection Grade |
IP67 |
| Working Distance |
30 Meter |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Form-Factor |
Turret |
| Card Slot |
No |
| Storage Type |
No |
| Body Material |
Metal + Plastic |
| Color |
White |
| Dimensions |
110 x 93 mm |
| Weight (gm) |
420 gm |
| Power |
12 VDC +/- 25%, 0.5 A, max. 6.0 W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Approx. Power Consumption |
7.5W |
| Operating Temperature |
-30°C to 60°C |
| Storing/Storage Temperature |
-30°C to 60°C |
| Operating Humidity |
95% or less (non-condensing) |
| Storing/Storage Humidity |
95% or less (non-condensing) |
| Warranty |
1 Year |

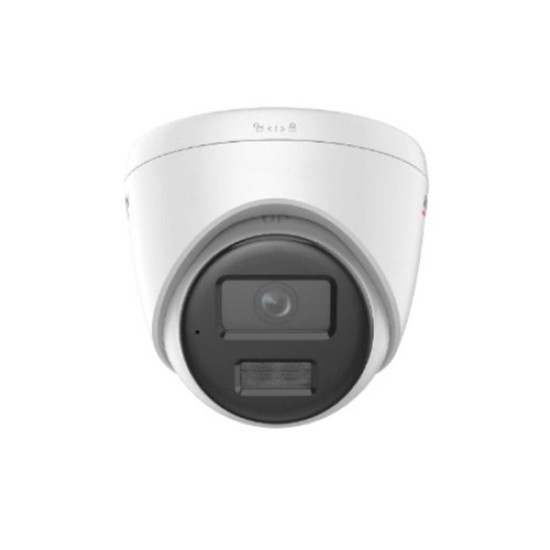

Hikvision DS-2CD1347G2H-LIU 4MP ColorVu Smart Hybrid Light Turret Camera
Hikvision DS-2CD1347G2H-LIU is a cutting-edge 4MP ColorVu Smart Hybrid Light turret camera designed for robust outdoor surveillance. This high-performance IP camera is equipped with a 1/3 inch Progressive Scan CMOS image sensor, providing exceptional image quality with a maximum resolution of 2560 x 1440 pixels. With a 2.8mm fixed lens, it offers a wide viewing angle of 96° horizontally, 52° vertically, and 114° diagonally, making it an excellent choice for monitoring large outdoor areas.
One of the standout features of the DS-2CD1347G2H-LIU is its advanced night vision capabilities. Utilizing ColorVu technology, it ensures vibrant color images even in low-light conditions, thanks to its integrated IR cut filter. The camera also supports a working distance of up to 30 meters in complete darkness, allowing for 24/7 surveillance without compromising image quality.
Designed for durability, this camera boasts an IP67 ingress protection rating, making it resistant to dust and water, suitable for various weather conditions. The body is constructed from a combination of metal and plastic, ensuring longevity and reliability.
Security is paramount with the DS-2CD1347G2H-LIU, featuring robust password protection, watermarking, and support for various authentication methods to safeguard your data. It includes intelligent features such as motion detection and human detection, enhancing its ability to minimize false alarms.
With a compact design measuring 110 x 93 mm and weighing just 420 g, installation is straightforward. It supports Power over Ethernet (PoE), simplifying setup and reducing cable clutter. Backed by a 1-year warranty, the Hikvision DS-2CD1347G2H-LIU is an outstanding choice for anyone seeking a reliable, high-performance outdoor surveillance solution that combines advanced imaging technology with user-friendly features.
