| General |
Specification |
| Dimensions |
Φ 110 mm × 93.2 mm (4.33"× 3.67") |
| Weight |
570 g (1.3 lb.) |
| Pan/Tilt/Rotation |
Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360° |
| Operating Conditions |
-30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%, PoE (802.3af) |
| Power Consumption |
Max. 4 W/6 W (PoE) |
| Camera |
Specification |
| Image Sensor |
1/3" progressive scan CMOS |
| Electronic Shutter Speed |
1/3s to 1/100,000 s, supportslow shutter |
| Minimum Illumination |
Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR |
| IR Distance |
Up to 30 m |
| Lens |
Specification |
| Lens Type |
2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°
6 mm @F2.0, horizontal field of view 55 |
| Mount Type |
M12 |
| Focal Length |
Fixed |
| Video |
Specification |
| Resolution |
2688 × 1520 |
| Day/Night |
IR cut filter with auto switch |
| BLC Mode |
Yes |
| Noise Reduction |
3D DNR |
| Warranty |
1 year |

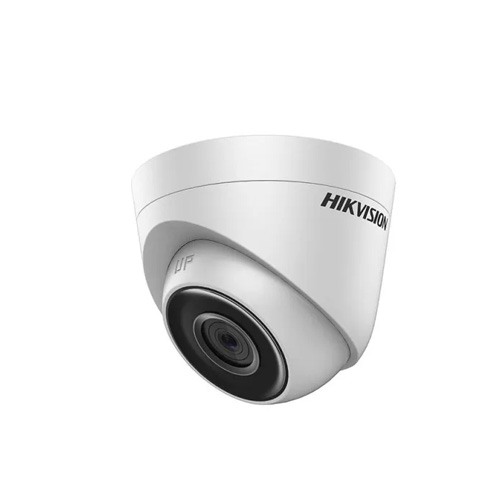

Hikvision DS-2CD1341-I 4MP Network Turret IP Camera
The Hikvision DS-2CD1341-I 4MP Network Turret IP Camera is a cutting-edge surveillance solution designed to deliver high-quality monitoring in various environments. With advanced features and a robust build, this camera ensures reliable performance and detailed imaging. Measuring Φ 110 mm × 93.2 mm (4.33"× 3.67"), and weighing 570 g (1.3 lb.), the camera's compact and sturdy design makes it suitable for both indoor and outdoor installations. Its pan, tilt, and rotation capabilities (Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°) offer a wide coverage area, providing comprehensive surveillance. Operating seamlessly in temperatures ranging from -30 °C to 60 °C with a humidity tolerance of 95% or less, this camera ensures reliable performance in diverse weather conditions. The power options are versatile, supporting both 12 VDC ± 25% and PoE (Power over Ethernet) standards. Power consumption is efficient, with a maximum of 4 W or 6 W (PoE), making it an energy-conscious choice. Equipped with a 1/3" progressive scan CMOS image sensor, the camera boasts a resolution of 2688 × 1520, delivering crisp and clear images for detailed surveillance. The electronic shutter speed ranges from 1/3s to 1/100,000s, with support for a slow shutter, enhancing performance in low-light conditions. Featuring various lens options, including 2.8 mm @ F2.0 with a horizontal field of view of 105.8°, 4 mm @ F2.0 with a horizontal field of view of 83.6°, and 6 mm @ F2.0 with a horizontal field of view of 55°, this camera offers flexibility to meet specific monitoring requirements. The M12 mount type ensures a secure and adjustable lens fit. With an impressive IR distance of up to 30 m, the camera's day/night functionality with an IR cut filter ensures optimal image capture in varying lighting conditions. Advanced features like Backlight Compensation (BLC) and 3D Digital Noise Reduction (3D DNR) contribute to improved image quality. Backed by a 1-year warranty, the Hikvision DS-2CD1341-I is a reliable choice for those seeking a high-performance network turret IP camera for their surveillance needs. Whether for home security or commercial applications, this camera excels in delivering exceptional video quality and advanced features.
Hikvision DS-2CD1341-I 4MP Network Turret IP Camera Features
- Compact and Robust Design: With dimensions of Φ 110 mm × 93.2 mm (4.33"× 3.67") and a weight of 570 g (1.3 lb.), the camera's compact and sturdy design makes it suitable for both indoor and outdoor installations.
- Pan/Tilt/Rotation: The camera offers versatile coverage with a pan range of 0° to 360°, tilt range of 0° to 75°, and rotation range of 0° to 360°, ensuring comprehensive surveillance.
- Operating Conditions: Capable of operating in a wide temperature range from -30 °C to 60 °C (-22 °F to 140 °F) and with a humidity tolerance of 95% or less (non-condensing), this camera ensures reliable performance in diverse weather conditions.
- Power Options: Supporting both 12 VDC ± 25% and PoE (802.3af) power supplies, the camera offers flexible installation options. The power consumption is efficient, with a maximum of 4 W or 6 W (PoE), making it an energy-conscious choice.
- Image Sensor and Resolution: Equipped with a 1/3" progressive scan CMOS image sensor, the camera boasts a high resolution of 2688 × 1520, delivering sharp and clear images for detailed surveillance.
- Electronic Shutter Speed and Minimum Illumination: The electronic shutter speed ranges from 1/3s to 1/100,000 s, with support for slow shutter, enhancing performance in low-light conditions. The camera's minimum illumination is impressive, with color sensitivity down to 0.01Lux @(F1.2, AGC ON) and 0 Lux with IR.
- Infrared (IR) Distance: Featuring an IR distance of up to 30 m, the camera ensures optimal image capture in low-light or nighttime conditions.
- Lens Specifications: The camera offers various lens options, including 2.8 mm @ F2.0 with a horizontal field of view of 105.8°, 4 mm @ F2.0 with a horizontal field of view of 83.6°, and 6 mm @ F2.0 with a horizontal field of view of 55°. The M12 mount type ensures a secure and adjustable lens fit.
- Day/Night Functionality and Advanced Features: The camera's day/night functionality with an IR cut filter ensures optimal image capture in varying lighting conditions. Additional features include Backlight Compensation (BLC) mode and 3D Digital Noise Reduction (3D DNR) for improved image quality.
- Warranty: Backed by a 1-year warranty, the Hikvision DS-2CD1341-I is a reliable choice for those seeking a high-performance network turret IP camera for their surveillance needs. Whether for home security or commercial applications, this camera excels in delivering exceptional video quality and advanced features.
