Model
Hikvision DS-1H18S/E
Type
Video Baluns connector
Others
Transmission Signal|: 1 channel, Transmission Distance: HDTVI/ HDCVI/ AHD 720P/ 300m (max), 1080P/ 250m(max), 3MP/ 4MP/ 5MP: 200m (max), Category Type: UTP CAT 5E/ 6, Coaxial Video Connector: BNC-M, Twisted-pair Video Connector: Push-terminal, Compa9ble Format: HDTVI/ HDCVI/ AHD, Resolution: 720P/ 1080P/ 3MP/ 4MP/ 5MP, Ant-interference: >60db, ESD: 1a contact discharge electricity level3, 1b air discharge electricity level3, Per: IEC61000-4-2, Coaxial Cable Connector: 2KV(common-code) Per:IEC61000-4-5, UTP Cable Connector: 2KV(different-code), 2KV(common-code), Per:IEC61000-4-5, BNC Male: 75 ohms, UTP Cable: 100 ohms, Shell: ABS, Color: Black, Dimensions: 39 x 19 x 17mm, Weight: 38.6 g, MTBF: >10000 h, Opera9ng Temperature: -10 to 55 Degree C, Storage Temperature: -20-70 Degree C, Humidity: 0-95% (non-condensing).
Warranty Details
No warranty

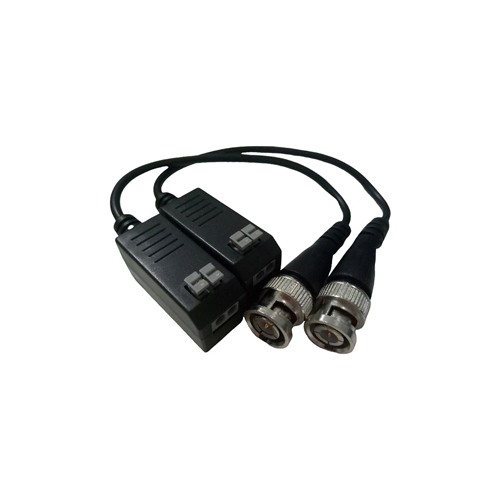

Hikvision DS-1H18S/E Video Baluns Connector
Hikvision DS-1H18S/E Video Baluns Connector is an essential component for enhancing the performance of CCTV camera systems. Designed specifically for use with HD cameras, this video balun allows for the efficient transmission of video signals over unshielded twisted pair (UTP) cables, such as CAT 5E or CAT 6, making it a versatile choice for various installations.
This connector supports a single channel and is capable of transmitting high-definition video signals in multiple formats, including HDTVI, HDCVI, and AHD. It offers impressive transmission distances, reaching up to 300 meters for 720P signals, 250 meters for 1080P, and 200 meters for higher resolutions of 3MP, 4MP, and 5MP. This flexibility makes it suitable for a wide range of surveillance applications, from small residential setups to larger commercial installations.
The DS-1H18S/E features a BNC male coaxial video connector and a push-terminal for twisted-pair connections, ensuring easy and secure installation. With an anti-interference capability exceeding 60 dB, it provides stable and high-quality video transmission, minimizing the risk of signal degradation. The device is designed to withstand harsh conditions, operating effectively in temperatures ranging from -10°C to 55°C (14°F to 131°F) and with a storage temperature range of -20°C to 70°C (-4°F to 158°F).
Constructed from durable ABS material and weighing only 38.6 grams, the DS-1H18S/E is compact and lightweight, making it easy to integrate into existing systems. Although it does not come with a warranty, its robust design and reliable performance ensure that it meets the demands of modern surveillance needs.
In summary, the Hikvision DS-1H18S/E Video Baluns Connector is a reliable and efficient solution for transmitting high-definition video signals, providing flexibility and performance for various CCTV applications.
