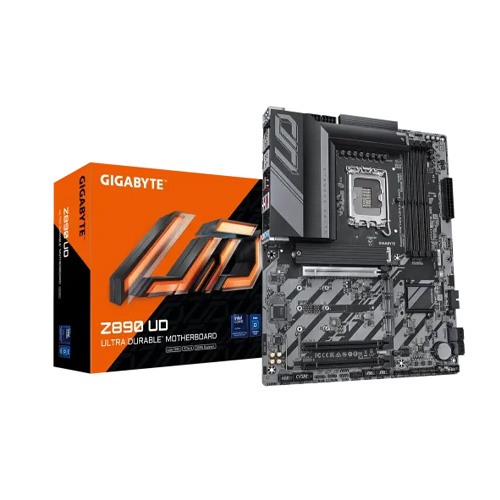

Gigabyte Z890 UD LGA 1851 ATX Motherboard

Gigabyte Z890 UD LGA 1851 ATX Motherboard

Gigabyte Z890 UD LGA 1851 ATX motherboard is a high-performance solution designed for Intel Core Ultra processors, featuring the LGA1851 socket. Powered by the Intel Z890 Express Chipset, it provides advanced connectivity and expansion options to meet the needs of demanding users. This motherboard supports up to 256 GB of DDR5 memory, with speeds up to 9200 MHz (overclocked), ensuring excellent memory performance for high-end gaming, content creation, and professional applications. It features four DIMM slots, dual-channel memory architecture, and support for ECC and non-ECC unbuffered memory. The Z890 UD offers extensive expansion capabilities with multiple PCIe slots. It includes one PCIe 5.0 x16 slot for graphics cards and NVMe SSDs, plus two PCIe 4.0 x16 slots running at x4 speeds, allowing for flexible configurations of additional GPUs or storage devices. It also provides four M.2 connectors supporting both PCIe 5.0 and 4.0 SSDs for ultra-fast storage options, as well as four SATA 6Gb/s connectors for additional drives. For connectivity, the motherboard features a Realtek 2.5GbE LAN chip, USB4® and DisplayPort 2.1 support, and multiple USB 3.2 Gen 1 and Gen 2 ports. The board also integrates high-definition audio with Realtek Audio CODEC, supporting 2/4/5.1/7.1-channel configurations. The Z890 UD motherboard includes advanced features like Q-Flash, Smart Backup, and GIGABYTE Control Center for easy system management. It also provides extensive cooling options with multiple fan headers and water cooling pump support, ensuring your system stays cool under heavy loads. With its robust RAID support, it offers data protection for both SATA and NVMe SSDs. Backed by a 3-year warranty, the Gigabyte Z890 UD is a reliable and versatile choice for gamers, enthusiasts, and professionals.

Features

• Intel Core Ultra Processor Support: Compatible with Intel Core Ultra processors, utilizing the LGA1851 socket for cutting-edge performance.
• Intel Z890 Express Chipset: Ensures enhanced connectivity, performance, and expandability for demanding tasks and multitasking.
• DDR5 Memory Support: Supports up to 256 GB of DDR5 memory with speeds up to 9200 MHz (overclocked), providing optimal performance for gaming and professional applications.
• Multiple PCIe Slots: Includes a PCIe 5.0 x16 slot (for graphics cards or NVMe SSD) and two PCIe 4.0 x16 slots running at x4, offering flexibility for multiple expansion cards.
• M.2 & SATA Storage Options: Four M.2 connectors for ultra-fast SSDs (PCIe 5.0/4.0), and four SATA 6Gb/s connectors for additional storage devices.
• Integrated Graphics: Supports Intel® HD Graphics with DisplayPort 2.1 and USB4® USB Type-C® port, offering high-resolution video output up to 3840x2160@144Hz.
• Realtek 2.5GbE LAN: Provides high-speed network connectivity with support for 2.5 Gbps, 1 Gbps, and 100 Mbps Ethernet.
• Advanced Audio: Realtek Audio CODEC supports High Definition Audio with 2/4/5.1/7.1-channel configurations for immersive sound quality.
• Dual Channel Memory Architecture: Ensures optimal data transfer speeds and performance with a dual-channel configuration.
• Cooling & Fan Support: Includes multiple system and CPU fan headers, along with support for water cooling pumps to keep your system running cool under load.
• RAID Support: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for both NVMe SSDs and SATA storage devices, ensuring data redundancy and performance optimization.
• USB and Connectivity Ports: Multiple USB ports (USB 3.2 Gen 1/2, USB4), including a USB Type-C® port, and a DisplayPort for versatile connectivity options.
• Q-Flash & Smart Backup: Offers easy BIOS updates and backup management through the Q-Flash and Smart Backup features.
• Durable and Reliable: Comes with a 3-year warranty for peace of mind and is designed with high-quality components for long-lasting reliability.
• GIGABYTE Control Center (GCC): Provides user-friendly system management and customization, offering a range of features for optimal performance.
