| Processor |
| CPU Socket |
LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core, Pentium Gold And Celeron Processors
(Go To GIGABYTE's Website For The Latest CPU Support List.)
L3 Cache Varies With CPU |
| Mainboard |
| Chipset |
Intel Z790 Express Chipset |
| Memory |
| Memory Platform |
14th And 13th Generation Intel Core I9/I7 Processors:
- Support For DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /
6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) /
5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/S Memory Modules
13th Generation Intel Core I5/I3 And 12th Generation Intel Core, Pentium Gold And Celeron Processors:
- Support For DDR5 4800/4400 MT/S Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
(The CPU And Memory Configuration May Affect The Supported Memory Types,
Data Rate (Speed), And Number Of DRAM Modules, Please Refer To "Memory Support List" On GIGABYTE's Website
For More Information.) |
| Storage |
| Storage Type |
CPU:
- 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
Chipset:
- 1 X M.2 Connectors (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB)
- 1 X M.2 Connectors (Socket 3, M Key, Type 2280 SATA And PCIe 4.0 X4/X2 SSD Support) (M2M_SB)
- 4 X SATA 6Gb/S Connectors
RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices
RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics |
| Graphics Chipset |
Integrated Graphics Processor-Intel HD Graphics Support:
- 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.1 Version And HDCP 2.3.
** Support For Native HDMI 2.1 TMDS Compatible Ports.
- 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz
* Support For DisplayPort 1.2 Version And HDCP 2.3
(Graphics Specifications May Vary Depending On CPU Support.) |
| Audio & Microphone |
| Audio Technology |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure
7.1-Channel Audio, Access The Audio Software For Audio Settings.
Support For S/PDIF Out |
| Networking & Connectivity |
| Wireless Connectivity |
Intel Wireless- AC 9560 (PCB Rev. 1.0)
- WIFI 802.11 A, B, G, N, Ac, Supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support 11ac 160MHz Wireless Standard
(Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN |
Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports |
| Connector |

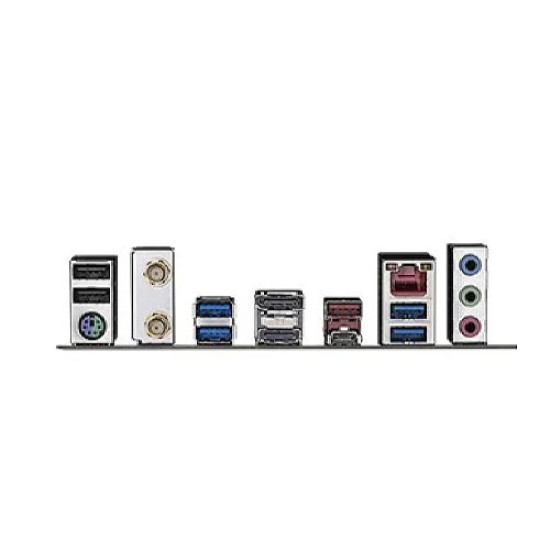

Back Panel Connectors:
1 X PS/2 Keyboard/Mouse Port
1 X USB Type-C Port, With USB 3.2 Gen 2 Support
1 X USB 3.2 Gen 2 Type-A Port (Red)
4 X USB 3.2 Gen 1 Ports
2 X USB 2.0/1.1 Ports
2 X SMA Antenna Connectors (2T2R)
1 X HDMI Port
1 X DisplayPort
1 X RJ-45 Port
3 X Audio Jacks |
| Internal I/O Ports |
1 X 24-Pin ATX Main Power Connector
2 X 8-Pin ATX 12V Power Connectors
1 X CPU Fan Header
1 X CPU Fan/Water Cooling Pump Header
3 X System Fan Headers
1 X System Fan/Water Cooling Pump Header
2 X Addressable LED Strip Headers
3 X M.2 Socket 3 Connectors
4 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X S/PDIF Out Header
1 X USB Type-C Header, With USB 3.2 Gen 1 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
2 X Thunderbolt Add-In Card Connectors
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only)
1 X Reset Button
1 X Q-Flash Plus Button
1 X Reset Jumper
1 X Clear CMOS Jumper |
| USB |
Chipset:
- 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support
- 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Header
- 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel
- 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
- 2 X USB 2.0/1.1 Ports On The Back Panel
Chipset+USB 2.0 Hub:
- 4 X USB 2.0/1.1 Ports, Available Through The Internal USB Headers |
| Technical Info |
| Supported OS |
Support For Windows 11 64-Bit
Support For Windows 10 64-Bit |
| Controller |
I/O Controller
ITE I/O Controller Chip |
| BIOS |
1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features |
| Features |
Support For GIGABYTE Control Center (GCC)
Support For Q-Flash
Support For Q-Flash Plus
Support For Smart Backup |
| Software |
Norton Internet Security (OEM Version)
LAN Bandwidth Management Software |
| Physical Specification |
| Form Factor |
ATX |
| Expansion Slots |
CPU:
- 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)
* The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed,
Be Sure To Install It In The PCIEX16 Slot.
Chipset:
- 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4)
- 2 X PCI Express X16 Slots, Supporting PCIe 3.0 And Running At X1 (PCIEX1_1, PCIEX1_4)
- 1 X PCI Express X1 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1_3) |
| Dimension |
30.5cm X 24.4cm |
| Warranty Information |
| Warranty |
3 Years |

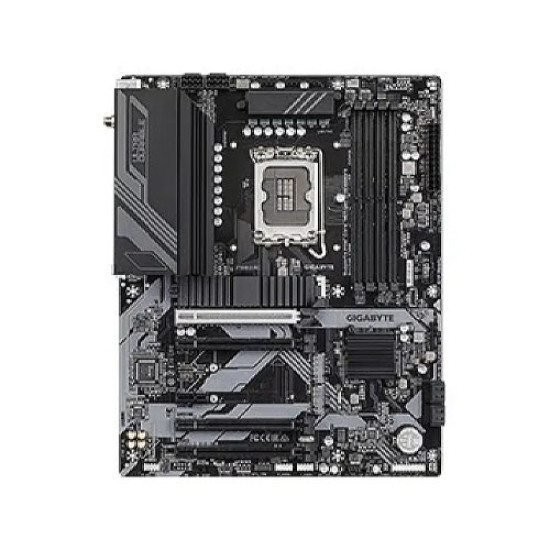

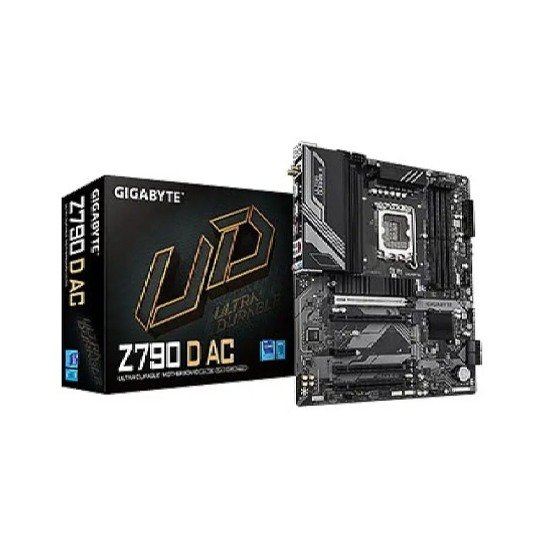

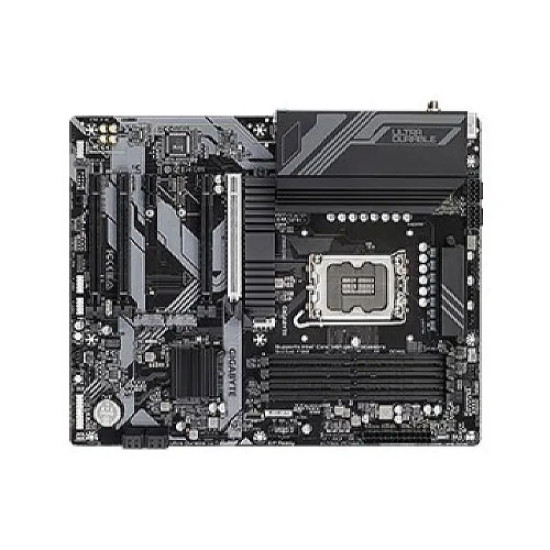

GIGABYTE Z790 D AC 14th, 13th & 12th Gen ATX Motherboard
The GIGABYTE Z790 D AC ATX Motherboard is engineered for Intel’s latest 14th, 13th and 12th Gen processors. Powered by the advanced Intel Z790 chipset, it delivers exceptional speed, connectivity, and reliability—making it the perfect foundation for gaming rigs and professional workstations alike. With DDR5 memory support, PCIe 5.0 graphics, Wi-Fi 6, and 2.5 GbE LAN, this board combines performance and modern design. The Smart Fan 6 cooling system, Q-Flash Plus BIOS update feature, and RGB Fusion 2.0 lighting provide full control over power, style, and efficiency.
Available now at the best price in Bangladesh from Speed Technology, this motherboard offers true GIGABYTE durability and official warranty support.
Key Benefits of GIGABYTE Z790 D AC 14th, 13th & 12th Gen ATX Motherboard
-
Full CPU Support: Compatible with Intel 14th–12th Gen Core i3 to i9 processors.
-
Next-Gen DDR5 Memory: Up to 7600 MHz (OC) for lightning-fast gaming and rendering.
-
PCIe 5.0 & M.2 Slots: Perfect for high-speed SSD and GPU performance.
-
Wi-Fi 6 + 2.5 GbE LAN: Smooth network experience for gaming and streaming.
-
Smart Fan 6: Keeps your system cool and quiet with custom fan control.
-
12+1+1 Power Phase VRM: Stable power delivery for maximum CPU efficiency.
-
RGB Fusion 2.0: Sync your lighting for a custom aesthetic.
-
Q-Flash Plus: Update BIOS easily—no CPU or RAM needed.
-
Ultra Durable™ Build: Reinforced slots and premium capacitors for long-term reliability.
-
Multiple Ports: USB 3.2 Gen 2 Type-C, HDMI, DisplayPort & audio jacks for every device.
Using Guide of GIGABYTE Z790 D AC 14th, 13th & 12th Gen ATX Motherboard
-
Install CPU & RAM: Place Intel processor into LGA1700 socket and add DDR5 modules to A2/B2 slots.
-
Add Storage: Use the M.2 PCIe slots for NVMe SSD installation and faster boot times.
-
Cooling Setup: Connect CPU and case fans to Smart Fan 6 headers for dynamic temperature control.
-
Network & Wi-Fi: Attach the included antenna for Wi-Fi 6 or plug in 2.5 GbE LAN for stable connectivity.
-
Update BIOS: Use Q-Flash Plus to upgrade firmware and enable XMP for DDR5 performance.
-
Lighting: Customize RGB effects through RGB Fusion 2.0 software.
Purchase Now Super Quality GIGABYTE Z790 D AC ATX Motherboard from Speed Technology
Upgrade your PC with the GIGABYTE Z790 D AC ATX Motherboard that is the ideal balance of innovation and stability. Perfect for builders who demand speed, connectivity, and durability in one package.
