| Motherboard | |
| Supported CPU | LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core, Pentium Gold And Celeron Processors L3 Cache Varies With CPU |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support For DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| Graphics | Integrated Graphics Processor-Intel HD Graphics Support: - 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz |
| Slots | CPU: - 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16) * The PCIEX16 Slot Shares Bandwidth With The M2C_CPU Connector. The PCIEX16 Slot Operates At Up To X8 Mode When A Device Is Installed In The M2C_CPU Connector. For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: - 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4) - 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1) |
| Supported Storage | - 1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 5.0 X4/X2 SSD Support) (M2C_CPU) - 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: - 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2Q_SB) - 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support)(M2P_SB) - 1 X M.2 Connector (Socket 3, M Key, Type 2280 SATA And PCIe 4.0 X4/X2 SSD Support) (M2M_SB) - 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID5, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, RAID5, And RAID 10 Support For SATA Storage Devices |
| Bluetooth | BLUETOOTH 5.3 |
| LAN | Marvell AQtion AQC113C 10GbE LAN Chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek ALC1220-VB CODEC ESS ES9118 DAC Chip Support For DTS:X Ultra High Definition Audio 2/4/5.1-Channel Support For S/PDIF Out |
| USB Port | - 3 X USB Type-C Ports, With USB 3.2 Gen 2x2 Support (2 Ports On The Back Panel, 1 Port Available Through The Internal USB Header) Chipset+2 USB 3.2 Gen 2 Hubs: - 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 1 Support - 7 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel Chipset+2 USB 3.2 Gen 1 Hubs: - 8 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) Chipset+USB 2.0 Hub: - 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 2 X 8-Pin ATX 12V Power Connectors 1 X CPU Fan Header 1 X CPU Fan/Water Cooling Pump Header 4 X System Fan Headers 4 X System Fan/Water Cooling Pump Headers 3 X Addressable RGB Gen2 LED Strip Headers 1 X RGB LED Strip Header 5 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2x2 Support 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X Noise Detection Header 2 X Thunderbolt Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only) 1 X Power Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper 2 X Temperature Sensor Headers Voltage Measurement Points |
| External I/O Ports | 1 X Q-Flash Plus Button 1 X Clear CMOS Button 2 X SMA Antenna Connectors (2T2R) 1 X DisplayPort 1 X USB Type-C Port, With USB 3.2 Gen 1 Support 2 X USB Type-C Ports, With USB 3.2 Gen 2x2 Support 7 X USB 3.2 Gen 2 Type-A Ports (Red) 4 X USB 3.2 Gen 1 Ports 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| WiFi | Qualcomm Wi-Fi 7 QCNCM865 (PCB Rev. 1.0) MediaTek Wi-Fi 7 MT7927, RZ738 (PCB Rev. 1.1) Intel Wi-Fi 7 BE200 (PCB Rev. 1.2) |
| DIMENSIONS | E-ATX Form Factor; 30.5cm X 26.0cm |
| Form Factor | E-ATX Form Factor; 30.5cm X 26.0cm |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | Support For GIGABYTE Control Center (GCC) Support For Q-Flash Support For Q-Flash Plus Support For Smart Backup |
| Others | Operating System- Support For Windows 11 64-Bit |
| Warranty | 3 Years |

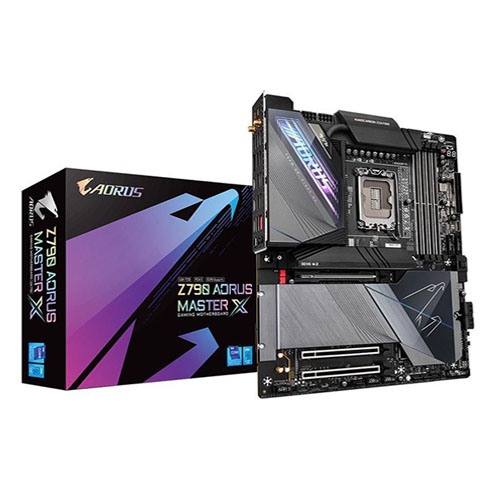

The GIGABYTE Z790 AORUS MASTER X DDR5 Motherboard is a premium, high-performance motherboard tailored for gamers, content creators, and PC enthusiasts who demand top-tier computing power and advanced features. Built on the Intel Z790 Express Chipset, this E-ATX motherboard supports LGA1700 socket processors, including the latest 12th, 13th, and 14th generation Intel Core, Pentium Gold, and Celeron CPUs, delivering exceptional performance for gaming, multitasking, and professional applications. Designed for next-generation memory performance, the Z790 AORUS MASTER supports DDR5 RAM at speeds up to 8266 MHz (OC), with a maximum capacity of 192 GB across four DIMM slots. It also accommodates XMP memory profiles and both ECC and non-ECC DIMMs, giving users flexibility for future upgrades. The motherboard features PCIe 5.0 and 3.0 slots, multiple M.2 connectors, and SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations for ultra-fast storage and enhanced data redundancy. Networking and connectivity are equally impressive, with Marvell AQtion 10GbE LAN, Wi-Fi 7, and integrated Intel HD Graphics for high-resolution displays. Audio enthusiasts will appreciate the Realtek ALC1220-VB CODEC combined with an ESS ES9118 DAC chip, offering DTS:X Ultra and high-definition sound for immersive audio experiences. The motherboard also includes extensive USB connectivity, including USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 2 Type-A ports, ensuring fast and seamless peripheral connections. Additional features like Q-Flash Plus, GIGABYTE Control Center, and smart backup options provide advanced system management and ease of maintenance. Optimized for Windows 11 64-bit, the Z790 AORUS MASTER combines cutting-edge performance, robust connectivity, and professional-grade features in a sleek E-ATX form factor. Backed by a 3-year warranty, this motherboard guarantees reliability, premium performance, and peace of mind for demanding users.
The GIGABYTE Z790 AORUS MASTER X DDR5 Motherboard is engineered for gamers, content creators, and PC enthusiasts seeking top-tier performance, cutting-edge connectivity, and professional-grade features. Designed with robust hardware and advanced technologies, it ensures seamless multitasking, ultra-fast data processing, and superior audio-visual experiences.
Built on Intel Z790 Express Chipset for high-performance computing
LGA1700 socket supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors
DDR5 memory support up to 8266 MHz (OC) with maximum 192 GB across 4 DIMM slots
Compatible with XMP profiles and both ECC and non-ECC DIMMs
PCIe 5.0 and 3.0 slots for next-gen graphics cards and expansion devices
Multiple M.2 connectors and SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
High-speed networking with Marvell AQtion 10GbE LAN and Wi-Fi 7
Immersive audio with Realtek ALC1220-VB CODEC and ESS ES9118 DAC featuring DTS:X Ultra
Extensive USB connectivity, including USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 2 Type-A ports
Smart backup options and optimized for Windows 11 64-bit
Premium E-ATX form factor with robust power delivery and cooling solutions
Combining superior performance, cutting-edge features, and professional reliability, the Z790 AORUS MASTER X is a top choice for high-end gaming and workstation setups. It belongs to the motherboard category, specifically GIGABYTE (Intel), and is available through Speed Tech, your trusted supplier for premium PC components.
The latest price of GIGABYTE Z790 AORUS MASTER X DDR5 Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE Z790 AORUS MASTER X DDR5 Motherboard at best price from our Website or visit any of our showrooms.
