| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to<br> install it in the PCIEX16 slot.<br> (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)<br> 1 x PCI Express x1 slot<br> (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.0 port | |
| USB (s) | Chipset:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> 4 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x RGB LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x serial port header<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub port | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions <br>of each application may also vary depending on motherboard specifications.<br> @BIOS<br> Ambient LED<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

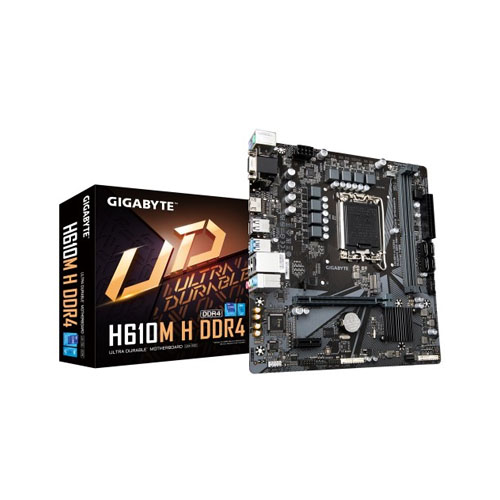

The Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard is a powerful and reliable solution designed for modern computing needs. Built to support the latest 12th Gen Intel processors, this motherboard ensures outstanding performance for gaming, multitasking, and productivity. Featuring the Micro ATX form factor, it perfectly fits in compact PC cases without compromising on expandability or connectivity. With support for DDR4 memory, high-speed data transfer, and multiple storage options, the H610M H provides a seamless computing experience. Its robust power delivery system and enhanced thermal design keep your system stable even under heavy workloads. Equipped with PCIe slots for graphics cards, multiple USB ports for peripherals, and integrated audio and LAN solutions, this motherboard meets the demands of both casual users and tech enthusiasts. The sleek design combined with Gigabyte’s renowned build quality ensures durability and reliability for long-term usage. Ideal for assembling a modern desktop setup, the H610M H DDR4 offers a perfect balance between performance, efficiency, and affordability, making it an excellent choice for those looking to build or upgrade their 12th Gen Intel system.
This section highlights why the Gigabyte H610M H DDR4 is a smart choice for your next PC build. Explore its features, advantages, and what to consider before buying.
Key Features & Benefits:
Buying Guidelines:
Whether you are building a high-performance desktop or upgrading your system, this motherboard is part of the premium 12th Gen Motherboards Collection. Explore more options in our 12th gen motherboard category at Speedtech, where quality meets affordability for every tech enthusiast.
The latest price of Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard in Bangladesh is 10,200৳ You can buy the Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
