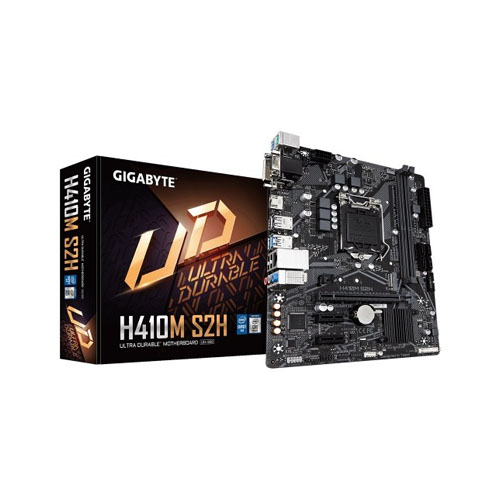

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard
Same Category
15,300৳ 16,516৳
Ex Tax:15,300৳
Your shopping cart is empty!
| Basic Information | |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU |
| Chipset | Intel H410 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Memory Specifications | |
| Type | Dual-channel architecture |
| Slots | 2 x DDR4 DIMM |
| Supported Memory | Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | 64 GB |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Connector & Ports | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek GbE LAN chip (1000/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| Others Information | |
| Special Features | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Building a reliable and cost-effective PC requires a motherboard that delivers stability, performance, and future-ready connectivity. The Gigabyte H410M S2H Micro ATX Motherboard is designed for 10th Generation Intel processors, offering a balanced combination of essential features for home, office, and entry-level gaming systems. Many users struggle with unstable performance, limited upgrade options, and connectivity issues—this motherboard addresses those problems with a solid and efficient platform. Powered by the Intel H410 Express Chipset, it supports Intel Core i9, i7, i5, i3, Pentium, and Celeron processors on the LGA1200 socket. This ensures flexibility in building systems based on different performance needs and budgets. With dual-channel DDR4 memory support up to 64GB, users can experience smoother multitasking, faster application loading, and improved overall system responsiveness. The board includes essential display outputs such as HDMI, DVI-D, and D-Sub, supporting up to 4K resolution via HDMI. This makes it ideal for both modern monitors and legacy display setups. Whether you're working, studying, or enjoying multimedia content, it delivers clear and stable visual performance. Designed in a compact Micro ATX form factor, the Gigabyte H410M S2H fits easily into most PC cases while still offering strong expandability. With M.2 NVMe SSD support, SATA 6Gb/s ports, and USB 3.2 Gen 1 connectivity, it ensures fast data transfer speeds and flexible storage options for modern computing needs.
Additional features like Realtek GbE LAN, high-definition audio support, USB 3.2 connectivity, and Gigabyte’s utility software suite enhance usability and system control. It is designed to provide a smooth computing experience for both beginners and experienced PC builders.
1. Trusted Gigabyte Quality: Built with durable components and backed by a 3-year warranty for long-term reliability and peace of mind.
2. Balanced Performance Platform: Offers an ideal mix of performance, stability, and affordability for everyday computing and office use.
3. Easy Upgrade & Compatibility: Supports a wide range of Intel CPUs, RAM configurations, and storage options for future upgrade flexibility.
Build your next PC with confidence using the Gigabyte H410M S2H Motherboard from SpeedTech. Enjoy stable performance, flexible upgrades, and trusted reliability, order now to power your system efficiently!
