| Basic Information | |
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support L3 cache varies with CPU |
| Chipset | Intel® H310 Express Chipset |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| Memory Specifications | |
| Type | DDR4 |
| Slots | 2 x DIMM sockets |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
| Max. Memory | 32 GB |
| Graphics | |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
| Max Shared Memory | 1 GB |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |

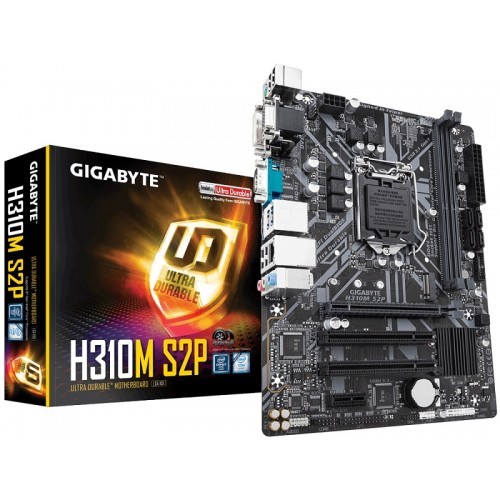

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard Compatible With Intel (Socket LGA1151) I3, I5 & I7 Processor. This 8-Channel HD Audio With High Quality Audio Capacitor Board Has Dual Channel DDR4 Maximum 32GB Memory And It Has The Capability Of Ultra-Fast M.2 With PCIe Gen2 X2 & SATA And USB 3.1 Gen 1 Interface. If We Consider The Graphics Of This Anti-Sulfur Resistors Design Board Supports Intel HD Graphics Having The Maximum Resolution Of 4096x2160@30 Hz For HDMI And 1920x1200@60 Hz For D-Sub & DVI-D Port. This High Quality Board Has 2 X PCIe & 2 X PCI Slots, GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management, GIGABYTE UEFI DualBIOS™ And CEC 2019 Ready.
The latest price of Gigabyte H310M S2P 8th Gen Micro ATX Motherboard in Bangladesh is 0৳ You can buy the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
