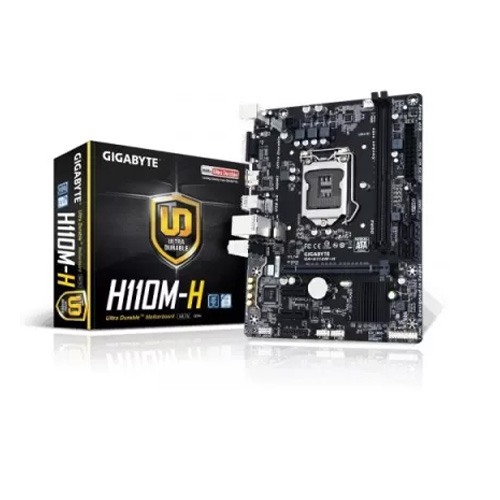

Gigabyte GA-H110M-H Micro ATX Motherboard

Regular Price: 9,000৳
Status: In Stock
Model: GA-H110M-H
Brand: : Gigabyte

Key Features

  • CPU: 7th/ 6th Generation Intel Processors
  • Chipset: Intel H110 Express
  • 2 x DDR4 DIMM
  • 3 x PCI Express slot
View More Info

Payment Options

  • Description
  • Questions (0)
  • Reviews (0)

Description

Basic Information
Supported CPU Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
Chipset Intel® H110 Express Chipset
BIOS 1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Type Dual channel DDR4 memory architecture
Slots 2 x DIMM
Supported Memory Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory 32 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Max Shared Memory 1024 MB
Connector & Ports
HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
4 x SATA 6Gb/s connectors
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header
Warranty Information
Manufacturing Warranty 03 Years



Gigabyte GA-H110M-H Micro ATX Motherboard

Gigabyte GA-H110M-H Micro ATX Motherboard is a compact and feature-rich solution that caters to the needs of budget-conscious users seeking reliable performance for their desktop systems. Designed with versatility and efficiency in mind, this motherboard is built on the Intel H110 chipset, providing a stable foundation for 6th and 7th generation Intel Core processors. The Micro ATX form factor ensures a space-efficient build while offering a balanced blend of connectivity and expansion options. The GA-H110M-H features a comprehensive array of I/O ports, including USB 3.0 and USB 2.0 ports, providing seamless connectivity for various peripherals. Additionally, the motherboard incorporates HDMI and DVI-D outputs, allowing users to enjoy high-definition visuals for multimedia and gaming applications. Equipped with DDR4 memory support, the GA-H110M-H enables users to harness the power of modern RAM technology for improved multitasking and overall system responsiveness. The dual-channel memory architecture further enhances data transfer rates, ensuring a smooth computing experience even during resource-intensive tasks. The motherboard's construction prioritizes durability and longevity, with high-quality components and advanced circuitry. This not only contributes to system stability but also enhances the overall lifespan of the motherboard. The GA-H110M-H also features Gigabyte's signature Ultra Durable design, incorporating solid capacitors and other reliability-focused elements. For users looking to expand their system, the GA-H110M-H provides PCIe slots for graphics cards and other expansion cards, allowing for customization according to specific needs. The inclusion of SATA 3 connectors ensures fast and efficient data transfer for storage devices. In summary, the Gigabyte GA-H110M-H Micro ATX Motherboard strikes a balance between affordability and performance. With its compact form factor, robust feature set, and compatibility with a range of Intel processors, it serves as an ideal foundation for budget-friendly desktop builds without compromising on essential features and reliability.

What is the price of Gigabyte GA-H110M-H Micro ATX Motherboard?

The latest price of Gigabyte GA-H110M-H Micro ATX Motherboard in Bangladesh is 9,000৳ You can buy the Gigabyte GA-H110M-H Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
