| Key Features | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors<br> L3 cache varies with CPU | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Memory Specifications | ||
| Type | DDR5 | |
| Slots | 4 x DDR DIMM | |
| Supported Memory | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Chipset | ||
| Chipset | Intel® B760 Express Chipset | |
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.3.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Input Devices | ||
| Expansion Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Motherboard | ||
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x Q-Flash Plus button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> 4 x SATA 6Gb/s connectors | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support<br> 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 1 x USB 3.2 Gen 1 port on the back panel<br> 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 3.2 Gen 1 Hub:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports on the back panel | |
| Wireless Communication module | WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.3<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Software | ||
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |

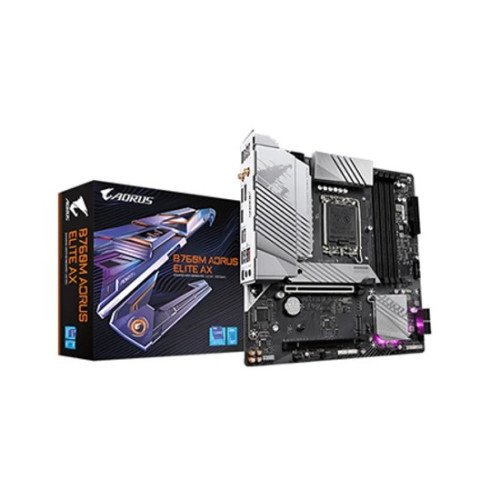

The Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard is a premium Micro-ATX solution designed for high-performance gaming, content creation, and advanced multitasking. Built on Intel’s B760 chipset, this motherboard fully supports both 12th and 13th Gen Intel Core processors, ensuring excellent upgrade flexibility and long-term value. Its robust power delivery system with an advanced digital VRM design delivers stable and efficient performance, even under heavy workloads or extended gaming sessions. This motherboard supports DDR5 high-speed memory, allowing users to experience faster bandwidth, improved responsiveness, and enhanced system efficiency compared to previous generations. The PCIe 4.0 x16 slot ensures compatibility with modern graphics cards, while multiple M.2 slots with thermal guards provide ultra-fast NVMe SSD performance without throttling. For connectivity, the onboard Wi-Fi 6E and Bluetooth offer low-latency wireless performance, making it ideal for online gaming and seamless device pairing. The Gigabyte B760M AORUS ELITE AX also features high-quality audio capacitors and reinforced PCIe slots for durability. Its optimized thermal design includes enlarged heatsinks and smart fan headers, helping maintain consistent temperatures during demanding tasks. With a sleek AORUS design, RGB support, and user-friendly BIOS, this motherboard is perfect for users seeking a balance of power, reliability, and modern features in a compact form factor.
This motherboard is engineered to deliver cutting-edge performance, reliable power efficiency, and next-generation connectivity. It is ideal for gamers, professionals, and PC builders looking for future-ready hardware in a compact design.
Key Features & Special Benefits
Buying Guideline
To explore more premium options from the Intel 12th Gen Motherboard Series, browse our complete 12th gen motherboard collection at Speedtech, where you’ll find authentic products, competitive pricing, and reliable after-sales support.
The latest price of Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard in Bangladesh is 23,500৳ You can buy the Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard at best price from our Website or visit any of our showrooms.
