| Key Features | ||
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> L3 cache varies with CPU | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DDR DIMM | |
| Supported Memory | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Chipset | ||
| Chipset | Intel® B760 Express Chipset | |
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.3.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Motherboard | ||
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)<br> 4 x SATA 6Gb/s connectors | |
| Connectivity | ||
| Others | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Pluso | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> Chipset+USB 3.2 Gen 1 Hub:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Software | ||
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |

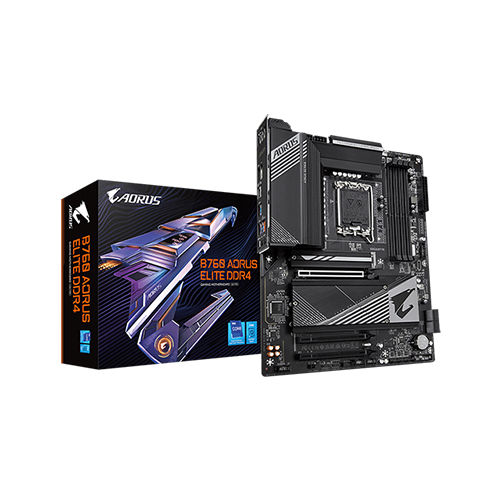

The Gigabyte B760 AORUS ELITE DDR4 Motherboard is engineered for users who demand stability, speed, and future-ready performance in their PC builds. Whether you are a gamer, content creator, or professional user, this motherboard ensures a seamless computing experience with Intel’s latest 12th and 13th Gen processors support. It is designed to eliminate common bottlenecks such as slow data transfer, overheating, and system instability, giving you a smooth and reliable performance under heavy workloads. With advanced DDR4 memory support, it delivers an excellent balance between performance and affordability, making it a smart choice for both mid-range and high-end builds. This motherboard also focuses on enhancing user experience through superior thermal design, robust power delivery, and high-speed connectivity options. You get improved system responsiveness, faster load times, and enhanced multitasking capabilities that help you stay productive and competitive. Gamers benefit from reduced latency and stable frame rates, while creators enjoy faster rendering and editing performance. The Gigabyte B760 AORUS ELITE DDR4 is not just a component; it is a foundation for building a powerful and future-proof PC system that adapts to your needs. If you are looking for reliability, performance, and long-term value, this motherboard is an ideal investment for your next build.
1. The Gigabyte B760 AORUS ELITE DDR4 stands out for its exceptional build quality and reliable performance, making it suitable for both gaming and professional workloads without compromising stability. 2. It offers a perfect balance of affordability and premium features, including advanced cooling, strong power design, and modern connectivity options that ensure long-term value and upgrade flexibility.
Upgrade your PC with the Gigabyte B760 AORUS ELITE DDR4 Motherboard today and experience unmatched stability, speed, and performance. Perfect for gamers and creators who want reliability and future-ready technology in one powerful platform. Order now and take your system to the next level!
The latest price of Gigabyte B760 AORUS ELITE DDR4 Motherboard in Bangladesh is 24,500৳ You can buy the Gigabyte B760 AORUS ELITE DDR4 Motherboard at best price from our Website or visit any of our showrooms.
