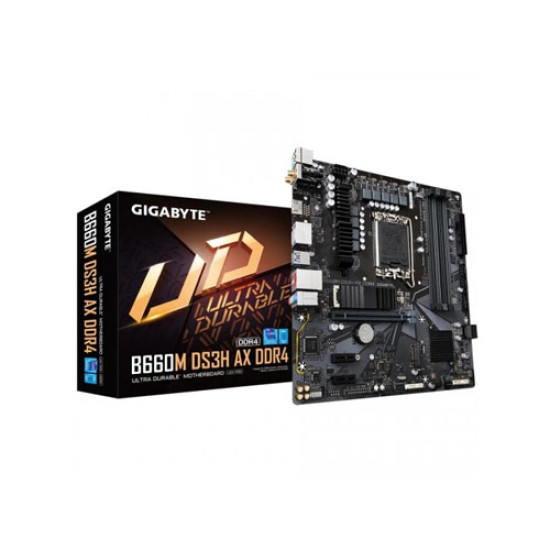

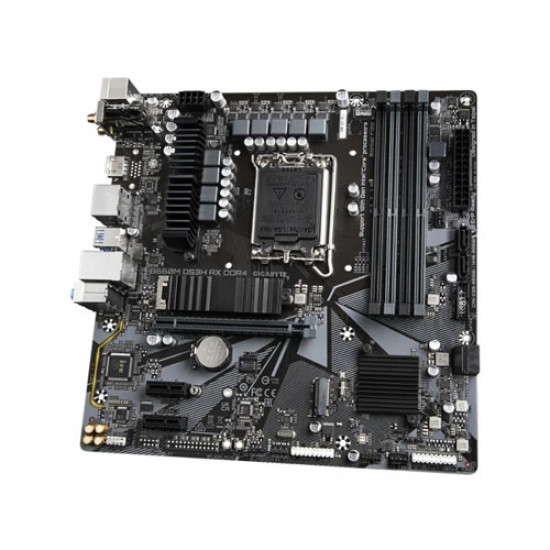

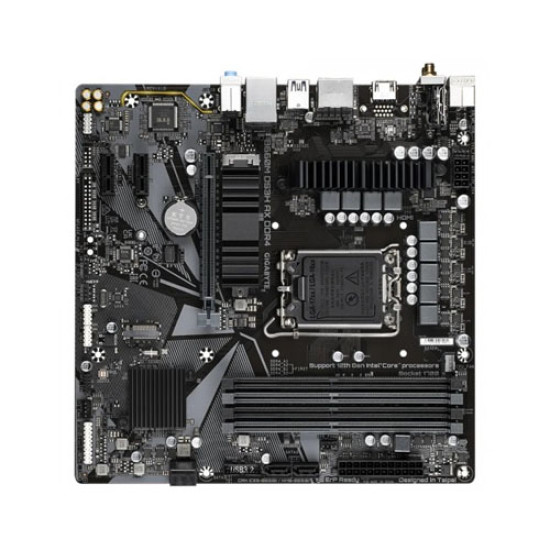

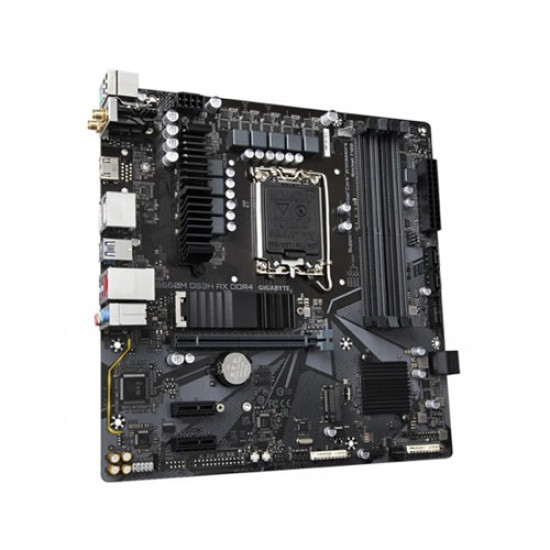

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Name: Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard
Brand: Gigabyte
Price: 16000.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B660M DS3H AX

Based on 1 reviews. - Write a review

16,000৳

Ex Tax: 16,000৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- LGA1700 socket: Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4,
- WIFI 6 802.11ax 2T2R & BT5
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2

View more details

Basic Information
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Type	DDR4
Slots	4 x DDR DIMM sockets
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time

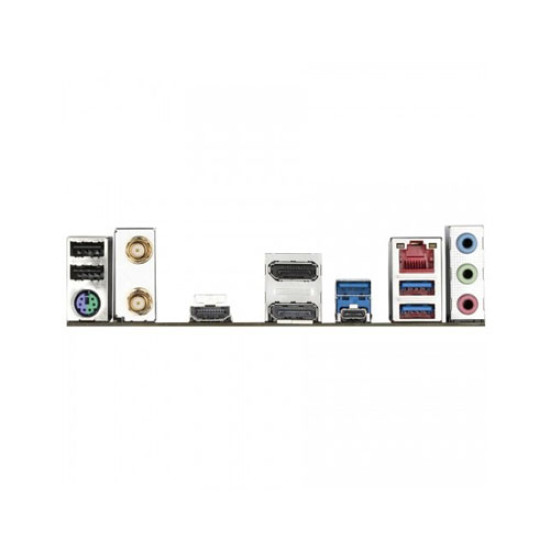

Connector & Ports
HDMI	1 x HDMI port
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Others Information
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

The Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard is a high-performance motherboard designed to bring out the full potential of Intel’s 12th Gen processors. Engineered with the latest DDR4 memory support, it ensures faster data transfer, efficient multitasking, and seamless gaming experiences. This Micro ATX motherboard features an optimized power delivery system, delivering stable and reliable performance for both gaming and professional workloads. Equipped with multiple PCIe slots, high-speed M.2 storage options, and robust connectivity including Wi-Fi 6 and Bluetooth 5.2, it allows users to build a versatile and future-proof system. Its smart thermal design keeps components cool even under heavy load, enhancing longevity and stability. With a user-friendly BIOS interface and comprehensive support for Intel’s latest technologies, the Gigabyte B660M DS3H AX DDR4 motherboard is an ideal choice for enthusiasts looking for performance, connectivity, and durability in a compact Micro ATX form factor.

Special Benefits of Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Whether you are building a gaming rig, content creation setup, or a high-performance workstation, this motherboard offers features that cater to all needs. Here’s why it stands out:

Supports Intel 12th Gen processors with LGA1700 socket for maximum performance.
Compatible with DDR4 memory up to 5000MHz (OC) for faster multitasking.
Integrated Wi-Fi 6 & Bluetooth 5.2 for seamless connectivity.
Dual M.2 slots with PCIe Gen4 support for ultra-fast storage solutions.
Smart thermal design with heatsinks on VRMs and M.2 slots for optimal cooling.
High-quality audio capacitors for immersive sound experience.
Robust PCIe slots for GPU expansion and additional cards.
User-friendly BIOS with smart tuning and overclocking options.

This motherboard is perfect for gamers, professionals, and tech enthusiasts seeking a powerful and stable platform. Explore the Latest Intel 12th Gen Motherboards and check out more options in our 12th gen motherboard category at Speedtech to find the perfect match for your system.
