Specification
| Basic Information |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Expansion Slots |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Memory |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Graphics |
| Graphics | supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports. |
| Connector & Ports |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 Years |

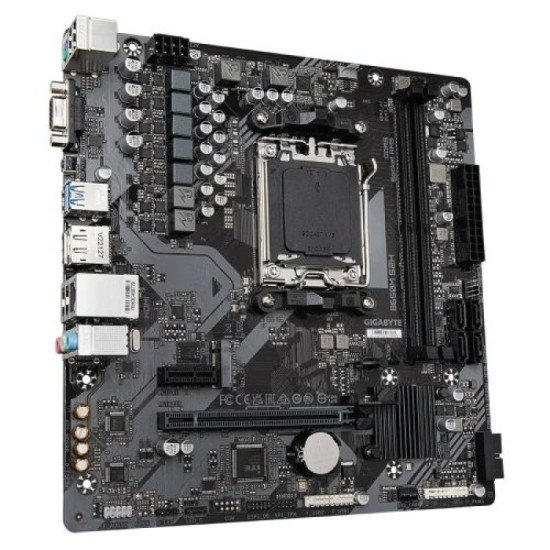

GIGABYTE B650M H AM5 Micro-ATX Motherboard
Building a reliable and future-ready PC can be challenging, especially when you need a motherboard that balances performance, compatibility, and affordability. The GIGABYTE B650M H AM5 Micro-ATX Motherboard is designed to solve these challenges by offering modern features and stable performance for gamers, creators, and everyday users. It supports AMD Ryzen 7000, 8000, and even 9000 series processors, ensuring long-term compatibility for next-generation upgrades.
Powered by the AMD B650 chipset, this motherboard delivers efficient performance with support for high-speed DDR5 memory up to 6400MHz (OC). Whether you’re multitasking, gaming, or handling creative workloads, the system remains smooth and responsive. The PCIe 4.0 x16 slot ensures strong GPU performance, while the M.2 slot enables ultra-fast NVMe SSD storage for quicker load times and improved system responsiveness.
With a compact Micro-ATX form factor, the B650M H fits easily into smaller builds without sacrificing essential features. It also includes multiple USB ports, HDMI, DisplayPort, and reliable Gigabit LAN connectivity. Advanced features like Q-Flash Plus and GIGABYTE Control Center make system management simple and efficient. If you’re planning a modern AMD build, this motherboard is a dependable and budget-friendly choice.
Key Benefits of GIGABYTE B650M H Motherboard
1. Next-Gen AMD Compatibility: Supports Ryzen 7000, 8000, and 9000 series processors, giving you a future-proof platform for upgrades without needing a new motherboard anytime soon.
2. High-Speed DDR5 Memory Support: With DDR5 RAM compatibility up to 6400MHz (OC), you get faster data processing, smoother multitasking, and improved overall system performance.
3. Reliable Gaming & Graphics Performance: The PCIe 4.0 x16 slot ensures stable and high-speed connectivity for modern GPUs, delivering better gaming performance and graphics output.
4. Fast Storage & Expandability: Equipped with an M.2 slot for NVMe SSD and multiple SATA ports, it allows faster boot times and flexible storage expansion for your needs.
5. Smart Features for Easy Management: Features like Q-Flash Plus and GIGABYTE Control Center simplify BIOS updates and system tuning, making it user-friendly for both beginners and advanced users.
Why Choose GIGABYTE B650M H?
- Trusted Brand Reliability: GIGABYTE is known for delivering durable and high-performance motherboards trusted by users worldwide.
- Compact & Efficient Design: Micro-ATX size makes it perfect for space-saving builds while still offering essential features.
- Great Value for Money: Combines modern technology, performance, and affordability, making it ideal for budget-conscious builders.
Build your next-gen PC with the GIGABYTE B650M H from SpeedTech. Enjoy reliable performance, future-ready features, and excellent value. Order now at the best price in Bangladesh and upgrade your system today!
