| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors<br> 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / <br>Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors | |
| Chipset | Intel B560 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 22.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to <br>install it in the PCIEX16 slot.<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> 2 x PCI Express x1 slots<br> (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) | |
| M.2 Socket | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD <br>support) (M2A_SB) | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors:<br> Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / <br>4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /<br> 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz<br> 10th Generation Intel Core i9/i7 processors:<br> Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules<br> 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:<br> Support for DDR4 2666/2400/2133 MHz memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> * When the D-Sub port and DisplayPort are connected at the same time, images will output <br>from the DisplayPort only.<br> 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz<br> * Support for HDMI 1.4 version and HDCP 2.3.<br> (Graphics specifications may vary depending on CPU support.)<br> Support for up to 3 displays at the same time | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
| USB (s) | Chipset:<br> 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)<br> 6 x USB 2.0/ 1.1 ports available through the internal USB headers<br> Chipset + USB 2.0 Hub:<br> 2 x USB 2.0/ 1.1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_CPU)(Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD <br>support) (M2A_SB)<br> 6 x SATA 6Gb/s connectors<br> Intel Optane Memory Ready | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 3 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 3 x USB 2.0/1.1 headers<br> 1 x S/PDIF Out header<br> 2 x Thunderbolt add-in card connectors<br> 1 x serial port header<br> 1 x parallel port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> Easy Tune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |

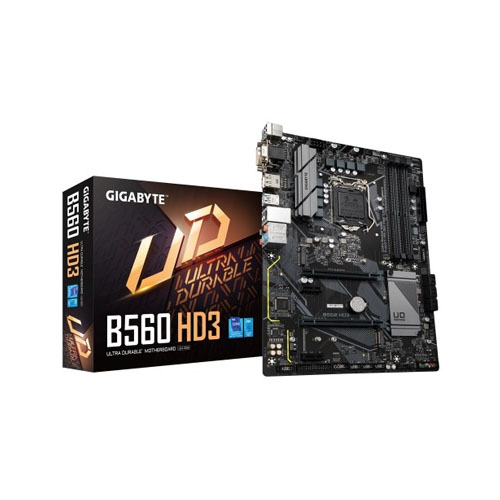

The Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard is a powerful and versatile solution for PC builders seeking reliability, performance, and expandability. Designed to support Intel’s 10th and 11th generation Core processors, this motherboard delivers robust computing capabilities for gaming, productivity, and content creation. Built on the ATX form factor, it offers a well-balanced layout with ample space for high-end components and effective airflow, ensuring your system stays cool under heavy workloads. Equipped with the Intel B560 chipset, the B560 HD3 enables memory overclocking and supports high-speed DDR4 RAM, allowing faster system responsiveness and enhanced multitasking. Gamers and enthusiasts will appreciate the PCIe 4.0 support for next-generation graphics cards, offering superior bandwidth and performance. Storage options include multiple M.2 slots and SATA ports, giving flexibility for SSDs and HDDs to meet your storage demands. Connectivity is a strong suit of this motherboard, featuring USB 3.2 Gen 1 and Gen 2 ports for fast data transfer, as well as reliable Gigabit Ethernet for smooth online gaming and network tasks. Audio is handled by a high-quality integrated codec, delivering clear and immersive sound for gaming or media consumption. The design also incorporates smart power delivery with robust VRM components, ensuring stable power to the CPU and other critical components. Overall, the Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard combines performance, expandability, and durability. Whether you are building a gaming rig, a workstation, or a multimedia PC, this motherboard offers a solid foundation for creating a reliable and high-performing system.
The Gigabyte B560 HD3 offers a rich set of features designed to enhance performance, connectivity, and user experience. Key highlights include:
The latest price of Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard in Bangladesh is 14,500৳ You can buy the Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard at best price from our Website or visit any of our showrooms.
