| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:<br> Supporting PCIe 3.0 x2 mode<br> 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:<br> Supporting PCIe 3.0 x1 mode | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ <br>2260/ 2280/ 22110 SSDs:<br> 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 <br>SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ <br>2260/ 2280/ 22110 SSDs:<br> Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen:<br> Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / <br>3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz <br>memory modules<br> 3rd Gen AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / <br>3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules<br> Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | Up to 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz | |
| USB (s) | CPU:<br> 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 2 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> 1 x USB 3.2 Gen 1 port on the back panel<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 2 x USB 2.0/1.1 ports on the back panel<br> Chipset + USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/ 100 Mbit) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ <br>2260/ 2280/ 22110 SSDs:<br> 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 <br>SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ <br>2260/ 2280/ 22110 SSDs:<br> Supporting SATA and PCIe 3.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Clear CMOS jumper | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

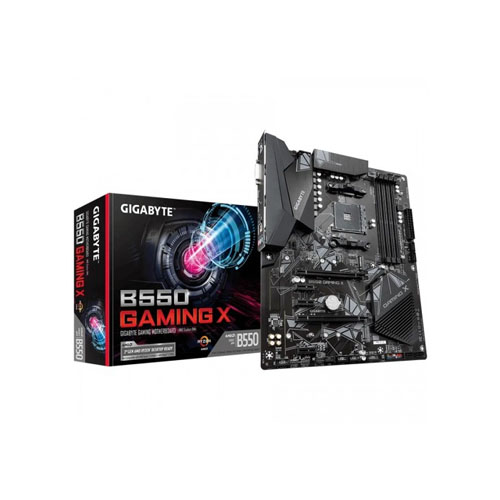

The Gigabyte B550 GAMING X AM4 ATX Motherboard is designed for gamers and PC enthusiasts who demand stability, performance, and future-ready features in one reliable platform. Built on the advanced AMD B550 chipset, this motherboard supports Ryzen processors, delivering exceptional processing power for gaming, content creation, and multitasking. Whether you are building a new gaming rig or upgrading your existing system, this motherboard ensures a smooth and responsive computing experience with optimized power delivery and enhanced thermal design. Its ATX form factor provides excellent expandability options, making it ideal for high-performance setups. With PCIe 4.0 support, users can experience ultra-fast data transfer speeds, allowing next-generation graphics cards and NVMe SSDs to perform at their maximum potential. The DDR4 memory support ensures faster system responsiveness and improved multitasking efficiency, making heavy applications run smoothly without lag. Gigabyte’s durable design and high-quality components guarantee long-term stability even under intense workloads. Advanced cooling solutions help maintain optimal temperatures, ensuring consistent performance during long gaming sessions. This motherboard is also designed with user-friendly BIOS and easy installation features, making it suitable for both beginners and experienced PC builders. It offers multiple connectivity options, ensuring compatibility with modern peripherals and storage devices. Overall, the Gigabyte B550 GAMING X is a perfect balance of performance, reliability, and value, making it a strong foundation for any high-end gaming or productivity PC build.
Upgrade your PC build with the Gigabyte B550 GAMING X Motherboard and experience next-level gaming performance, faster responsiveness, and long-term reliability. Perfect for gamers and creators who want a powerful and future-ready motherboard solution.
The latest price of Gigabyte B550 GAMING X AM4 ATX Motherboard in Bangladesh is 22,000৳ You can buy the Gigabyte B550 GAMING X AM4 ATX Motherboard at best price from our Website or visit any of our showrooms.
