| Basic Information | ||
| Supported CPU | AM4 Socket<br> Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon<br> Vega Graphics/ Ryzen 1st Generation Processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 Socket 3 connector<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)<br> Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or <br>Athlon APU. | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory | |
| Supported Memory | - Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules<br> - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> - Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz<br> The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note)<br> Support for HDMI 2.0 version and HDCP 2.2.(Note)<br> Maximum shared memory of 2 GB<br> (Note) Actual support may vary by CPU. | |
| Max Shared Memory | 2 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz<br> Support for HDMI 2.0 version and HDCP 2.2.<br> 1 x HDMI port | |
| USB (s) | Chipset:<br> 2 x USB 3.1 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br> CPU:<br> 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)<br> Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series <br>or Athlon APU.<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> To configure 7.1-channel audio, you have to use an HD front panel audio module and enable <br>the multi-channel audio feature through the audio driver.<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x speaker header<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> Available applications in APP Center may vary by motherboard model. Supported functions of<br> each application may also vary depending on motherboard specifications.<br> BIOS<br> 3D OSD<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart TimeLock<br> Smart HUD<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |

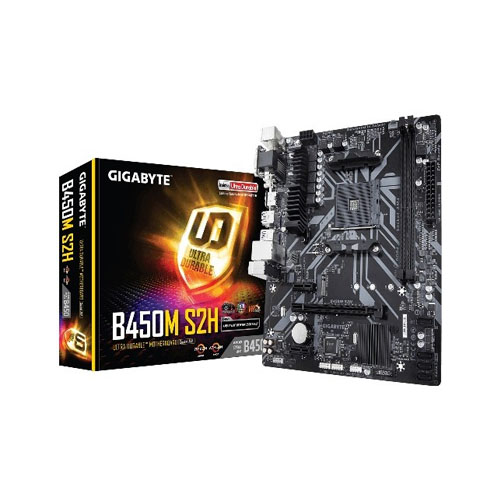

The Gigabyte B450M S2H ULTRA Durable Motherboard is a high-performance, reliable, and feature-rich motherboard designed for AMD Ryzen processors. Built with durability and efficiency in mind, this Micro-ATX motherboard offers excellent stability for gaming, multimedia, and professional workloads. Equipped with dual-channel DDR4 memory support, PCIe 3.0 x16 slot for discrete graphics cards, and multiple USB ports, it ensures seamless connectivity and faster data transfer. Its ultra-durable components and high-quality PCB construction provide long-lasting performance, making it an ideal choice for gamers, content creators, and PC enthusiasts. Additionally, the motherboard supports AMD StoreMI technology, allowing users to combine SSD speed with HDD capacity for an optimized storage solution. Whether you are building a compact gaming rig or a productive workstation, the Gigabyte B450M S2H ULTRA Durable Motherboard guarantees reliability, efficiency, and top-notch performance.
The Gigabyte B450M S2H ULTRA Durable Motherboard comes packed with cutting-edge features that make it an excellent choice for AMD system builders. Here’s what sets it apart:
Buying Guidelines:
When looking for High Performance Motherboards, the Gigabyte B450M S2H ULTRA Durable Motherboard stands out in the motherboard category for both gaming and productivity builds. Available now at Speedtech, it combines reliability, performance, and value for every PC enthusiast.
The latest price of Gigabyte B450M S2H ULTRA Durable Motherboard in Bangladesh is 6,250৳ You can buy the Gigabyte B450M S2H ULTRA Durable Motherboard at best price from our Website or visit any of our showrooms.
