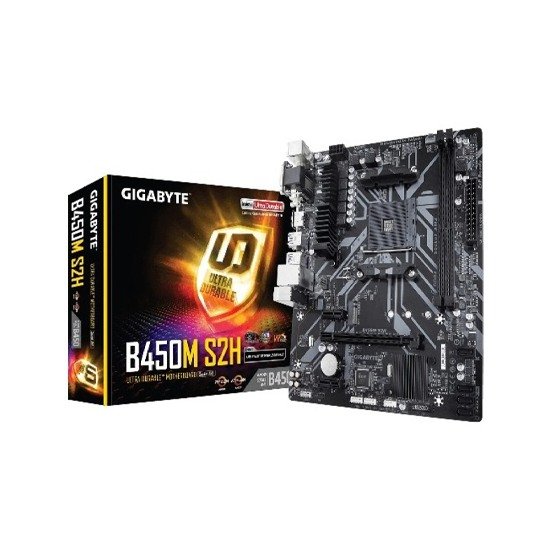

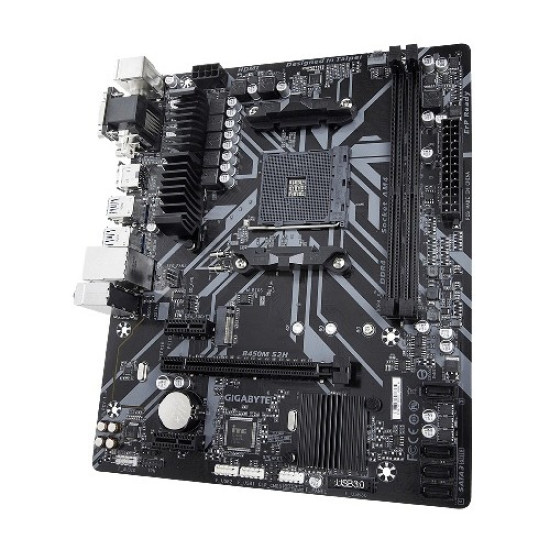

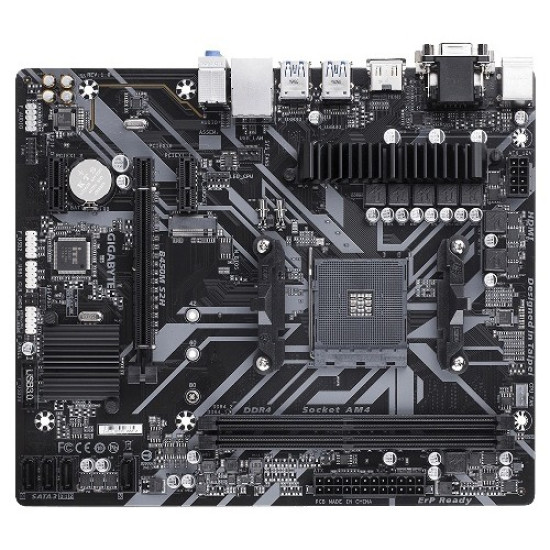

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard

Name: Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard
Brand: Gigabyte
Price: 9700.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B450M S2H

Based on 1 reviews. - Write a review

9,700৳

Ex Tax: 9,700৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supports Up to AMD Ryzen 5000 series Processors
- Chipset: AMD B450
- Memory: 2 x DDR4, Max. 32 GB
- 3 x PCI Express slots

View more details

Basic Information
Supported CPU	AM4 Socket Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors
Chipset	AMD B450
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
M.2 Socket	1 x M.2 Socket 3 connector 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU.
Memory Specifications
Type	Dual channel memory architecture
Slots	- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Supported Memory	- Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	32 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU.
Max Shared Memory	2 GB

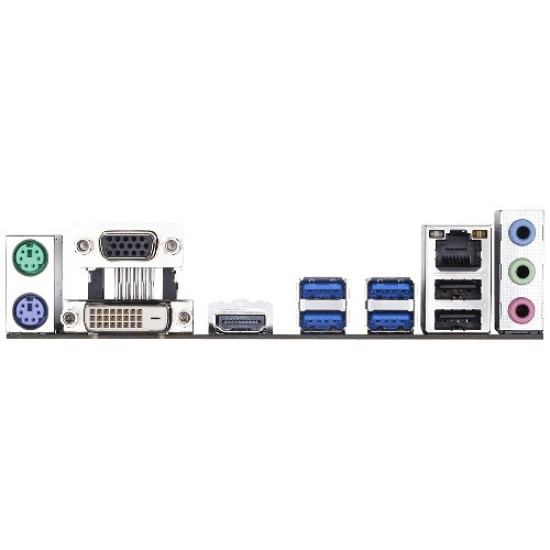

Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.0 version and HDCP 2.2. 1 x HDMI port
USB (s)	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
Others Information
Special Features	Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	03 years warranty

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard

The Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard is a compact yet powerful solution designed for gamers, content creators, and PC enthusiasts looking to build a high-performance AMD system. Built on the AMD B450 chipset, this motherboard ensures compatibility with AMD Ryzen processors, delivering smooth multitasking and robust computing performance. Featuring a micro ATX form factor, it perfectly balances size and functionality, making it ideal for mid-sized PC builds without compromising on expandability. This motherboard comes with dual DDR4 memory slots supporting high-speed RAM, enabling faster data access and improved overall system performance. Equipped with multiple PCIe slots, users can easily add graphics cards, storage solutions, or other expansion cards to enhance gaming or professional workloads. Its advanced cooling design ensures the system stays stable even during intense gaming or heavy productivity tasks. Additionally, the motherboard offers SATA III and M.2 slots for versatile storage options and high-speed data transfer. Gigabyte’s Ultra Durable components guarantee longevity, stability, and optimal power efficiency. With integrated audio and networking solutions, the Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard ensures a seamless and immersive computing experience.

Advanced key features of Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard

Explore the essential highlights and advantages of this versatile motherboard to make an informed purchase decision:

AMD B450 Chipset: Optimized for Ryzen processors, providing excellent performance and stability.
Dual DDR4 RAM Slots: Supports up to 64GB memory for smooth multitasking and gaming.
Micro ATX Form Factor: Compact size for flexible builds while maintaining full functionality.
PCIe Expansion Slots: Add graphics cards, storage, or other peripherals easily.
High-Speed Storage Support: Includes M.2 and SATA III slots for SSDs and HDDs.
Advanced Cooling Solutions: Ensures stable performance during intense workloads.
Ultra Durable Components: Reliable build quality for long-lasting performance.
Integrated Audio & Networking: High-quality onboard sound and Ethernet connectivity.

With these features, the Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard is perfect for gamers, professionals, and enthusiasts seeking a reliable foundation for their AMD-based PC. For more high-quality motherboards, explore the Gigabyte AMD Motherboard Collection under our gigabyte motherboard amd category at SpeedTech, where performance meets reliability for all your computing needs.
