| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Expansion Slots | ||
| PCI | CPU:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16<br> Chipset:<br> 2 x PCI Express x1 slots, supporting PCIe 3.0 | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors:<br> Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / <br>3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules<br> 3rd Gen AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / <br>3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Max. Memory | 64 GB | |
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB (s) | CPU:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB <br>headers) | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)<br> Chipset:<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x speaker header<br> 1 x chassis intrusion header<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

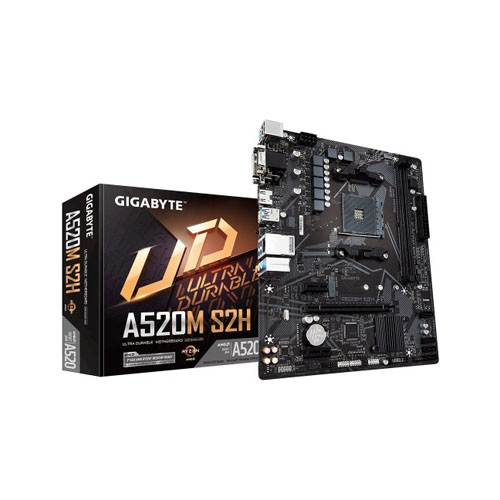

The latest price of Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard in Bangladesh is 9,000৳ You can buy the Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard at best price from our Website or visit any of our showrooms.
