Specification
| Projection Features |
| Display Type | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | WUXGA (1920×1200 pixels) |
| Brightness | Color Light Output 6200 Lumen
White Light Output 6200 Lumen |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 2500,000: 1 |
| Image Size | 50 inches – 500 inches |
| Others | Lens shifting Manual – Vertical ± 50 %, horizontal ± 20 %
Colour Reproduction Up to 1.07 billion colours
Keystone Correction Manual vertical: ± 30 °, Manual horizontal ± 30 ° |
| Connectivity |
| Interface | USB 2.0 Type A, USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/n (2.4GHz), Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback |
| Power | Power supply voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Power Consumption: 345 W, 258 W (economy), 0.3 W (standby) |
| External Features |
| Color | White |
| Weight | 8.4 kg |
| Dimension | 440 x 339 x 136 mm |
| Warranty |
| Manufacturing Warranty | 1-year Parts & Service warranty/ Lamp: 12 Months or 1000hrs warranty |
Description

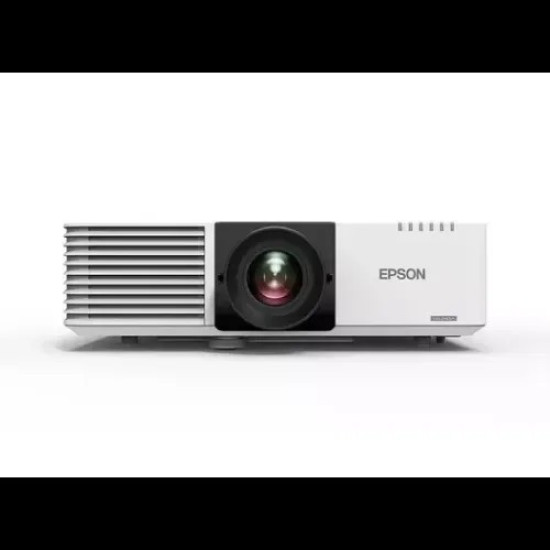

EPSON EB-L630U 6200 Lumens 3LCD WUXGA LASER Multimedia Projector
The EPSON EB-L630U 6200 Lumens 3LCD WUXGA LASER Multimedia Projector is a top-tier projection solution designed for both professional and entertainment use, featuring advanced 3LCD Technology with RGB liquid crystal shutters for vibrant and accurate color reproduction, capable of displaying up to 1.07 billion colors. It boasts a high-resolution WUXGA (1920×1200 pixels) display on a 0.67-inch LCD panel, ensuring sharp and clear visuals. With a contrast ratio of 2,500,000:1 and a powerful light output of 6,200 lumens for both color and white light, this projector delivers bright and vivid images even in well-lit environments. The laser light source offers a long lifespan of up to 20,000 hours in standard mode and up to 30,000 hours in eco mode, minimizing maintenance needs. Installation is flexible with a projection ratio of 1.35 – 2.20:1, manual lens shifting (vertical ± 50%, horizontal ± 20%), and a manual zoom factor of 1 – 1.6, supporting image sizes from 50 inches to 500 inches. Keystone correction allows for manual vertical and horizontal adjustments of ± 30°, ensuring perfectly aligned images. Connectivity options are extensive, including USB 2.0 Type A and B, RS-232C, Ethernet, Wireless LAN (IEEE 802.11a/b/g/n/ac), VGA in and out, HDMI out, HDBaseT, Miracast, and stereo mini jack audio in and out, with support for USB Type A playback. The projector operates efficiently on an AC power supply voltage of 100 V – 240 V at 50 Hz – 60 Hz, with power consumption of 345 W in normal mode, 258 W in economy mode, and just 0.3 W in standby mode. Compact and portable, it measures 440 x 339 x 136 mm and weighs 8.4 kg, making it easy to install and transport. The EPSON EB-L630U is ideal for business presentations, educational settings, and home entertainment, offering exceptional projection quality and versatile connectivity.
