| Specifications |
|
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux |
| Display Interface |
Web/Operating in Local GUI |
| Resolution Support |
8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF |
| Decoding Capacity |
1-ch@8MP, 1-ch@5MP, 2-ch@4MP, 2-ch@3MP, 4-ch@1080P (30FPS) |
| Video Compression |
Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression |
PCM, G711A, G711U, G726, AAC |
| Record Modes |
Manual, Alarm, Motion Detection, Timed Recording |
| Alarm Input |
Yes |
| Playback Features |
Play, Pause, Stop, Fast Forward, Rewind, Frame-by-Frame, Audio On/Off, Backup |
| Backup Method |
USB Device |
| Ethernet Port |
1 × RJ-45 (10/100 Mbps) |
| Mobile App Support |
iDMSS (iOS), gDMSS (Android) |
| Storage Capacity |
1 SATA 2.0 Port, Up to 8TB HDD |
| USB Ports |
1 Front USB 2.0, 1 Rear USB 2.0 |
| Power Supply |
DC 12V, 1.5A |
| Power Consumption |
≤10W (Without HDD) |
| Dimensions |
260 × 225 × 47.6 mm |
| Net Weight |
0.81 kg |
| Warranty |
01-Year Manufacturing Warranty |

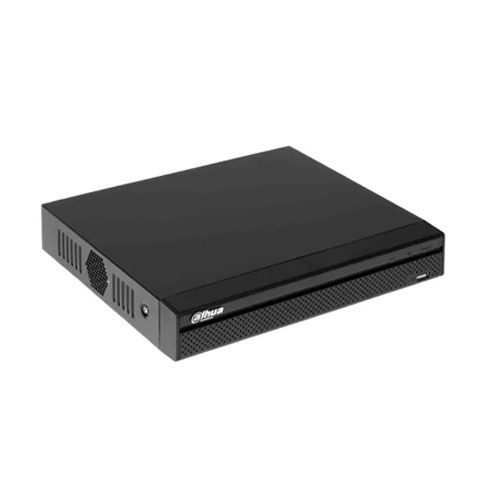

Dahua DHI-NVR1104HS-S3/H 4 Channel H.265 NVR for Reliable CCTV Recording
Managing and securing surveillance footage efficiently is essential for homes, offices, retail stores, and small businesses. The Dahua DHI-NVR1104HS-S3/H 4 Channel Compact 1U Lite H.265 Network Video Recorder is designed to provide dependable video recording, smooth playback, and efficient storage management for modern IP camera systems. Equipped with advanced Smart H.265+ compression technology, this NVR significantly reduces bandwidth and storage consumption without compromising image quality, allowing users to store more footage for longer periods. Its support for up to 8MP camera resolution ensures crystal-clear video recordings, making it easier to identify important details when reviewing footage. The compact 1U design saves installation space while delivering professional-grade performance suitable for both residential and commercial environments. With support for up to 8TB HDD storage, remote monitoring via iDMSS and gDMSS mobile applications, and multiple recording modes including motion detection and alarm-triggered recording, this NVR offers flexible surveillance management. Whether you are upgrading an existing security system or building a new surveillance network, the Dahua DHI-NVR1104HS-S3/H delivers stable operation, user-friendly management, and reliable recording performance. Available at Speed Tech, this network video recorder offers an excellent balance of affordability, efficiency, and long-term security value.
Key Advantages of Using This Dahua 4-Channel Network Video Recorder
- Save More Storage Space: Smart H.265+ video compression reduces file sizes significantly, allowing you to keep surveillance recordings for longer periods without constantly upgrading storage capacity.
- Capture High-Resolution Footage: Support for up to 8MP cameras ensures sharper video quality, helping users identify faces, license plates, and critical details more accurately.
- Flexible Recording Options: Multiple recording modes including manual, scheduled, motion detection, and alarm recording allow you to customize surveillance according to your security requirements.
- Convenient Remote Monitoring: Access live views and recorded footage from anywhere through the iDMSS and gDMSS mobile applications, providing greater peace of mind when away from your property.
- Smooth Playback Experience: Advanced playback functions such as frame-by-frame review, fast forwarding, rewinding, and audio controls make investigating incidents quick and efficient.
- Large Storage Support: The NVR supports up to 8TB of storage on a single HDD, making it suitable for users who need extended video retention.
- Reliable Performance: Built on a stable embedded Linux platform and powered by an embedded processor, the system delivers consistent performance for continuous surveillance operations.
- Compact and Space-Efficient Design: Its small footprint allows easy installation in offices, homes, shops, and security cabinets without occupying excessive space.
- Easy Backup Options: Users can quickly export important recordings to USB devices for evidence preservation, reporting, or long-term archival purposes.
- Cost-Effective Security Solution: Combining advanced compression, high-resolution support, and reliable recording capabilities, this Dahua NVR provides excellent value for budget-conscious security deployments.
Why the Dahua DHI-NVR1104HS-S3/H Stands Above the Competition
Advanced H.265+ Compression Technology
The intelligent compression system minimizes storage and bandwidth requirements while maintaining excellent video quality, helping users lower long-term surveillance costs.
Professional-Grade Recording Capability
With support for up to 8MP cameras, flexible recording modes, and extensive playback features, this NVR delivers dependable performance for both residential and commercial security applications.
Trusted Dahua Reliability
Dahua is globally recognized for producing high-quality surveillance equipment. Combined with Speed Tech's commitment to genuine products and customer support, users receive a dependable security solution backed by confidence.
Upgrade Your Security System Today
Protect your property with the Dahua DHI-NVR1104HS-S3/H and enjoy dependable surveillance recording every day. Explore more professional Dahua NVR Solutions and advanced Security Systems from Speed Tech to build a smarter and more secure monitoring environment.
