Specification
| General |
| Functions |
Print Only |
| Printer Type |
12 Colour, 44“ / 1,118 mm |
| Output Color |
Color |
| Print |
| Technology |
Ink |
| Print Speed |
Heavyweight Coated Paper HG (A0): 2 min 49 sec
Glossy Photo Paper HG (A0): 5 min 35 sec |
| Print Resolution |
2400 x 1200dpi |
| Duplex |
Manual |
| Paper Information |
| Paper Type |
Roll Paper: Front Load, Front Output
One Roll, Front Load, Front Output (Default)
Cut Sheet: Front Load, Front Output
(Manual Feed using Media Locking Lever) |
| Paper Weight |
Media Width (Roll / Cut Sheet): 152.4 ~ 1,118 mm
Media Thickness (Roll / Cut Sheet): 0.07 ~ 0.8 mm
Minimum Printable Length
Roll Paper:
101.6 mm (exclude Cloth and Canvas media)
Cut Sheet: 203.2 mm
Maximum Printable Length
Roll Paper:
18 m (varies according to OS and application)
Cut Sheet: 1.6 m
Borderless Printing Width (Roll Only)
Recommended:
515 mm (B2), 728 mm (B1), 1,030 mm (B0), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36", 42“, 44”
Printable:
257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6", 8", 12", 16", 18”, 20", 22", 30", 34”,
300 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
Other than above, free size borderless printing is supported on only roll paper by user definition. |
| ADF |
No |
| Technical Specs |
| Memory |
Standard: 3GB
Hard Disk: 500 GB (Encrypted) |
| Connectivity |
USB, LAN, Wi-Fi |
| Power Consumption |
Printing: 85 W or less
Sleep Mode: 1.7 W or
Power Off: 0.1 W or less
Power Supply: AC 100 - 240 V, 50 - 60 Hz |
| Physical Specs |
| Color |
Black |
| Dimension |
Main Unit:
1,593 × 734 × 628 mm
Approx. 106 kg
Main Unit + Stand + Basket:
1,593 × 984 × 1,168 mm (Basket Opened）
1,593 × 766 × 1,168 mm (Basket Closed）
Approx. 124 kg |
| Weight |
Main Unit + Pallet:
1,820 x 915 x 1,042 mm
185 kg
Roll Unit:
1,727 x 562 x 461 mm
33 kg |
| Warranty Information |
| Warranty |
1-year Limited warranty, an Adapter/Power Cable with no warranty, and also a Box Mandatory While Claiming. |

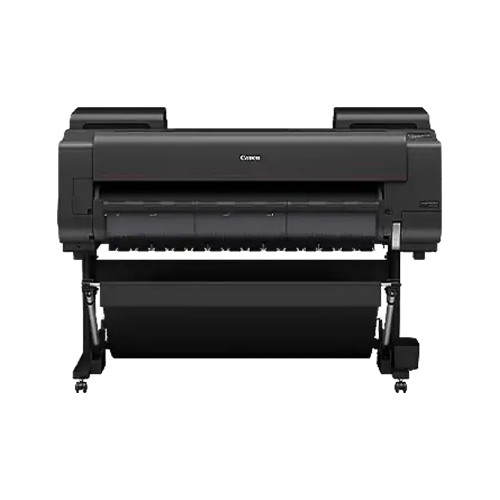

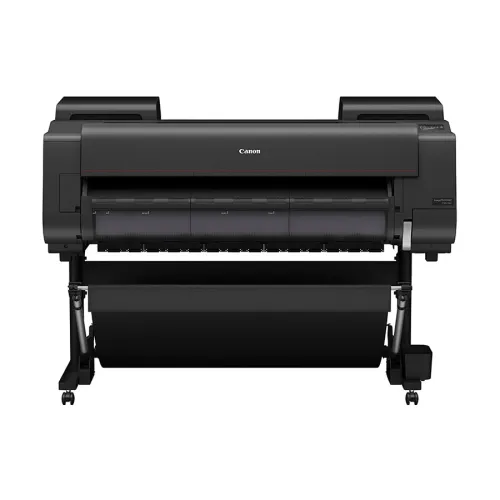

Canon imagePROGRAF PRO-546 44-Inch Printer
The Canon imagePROGRAF PRO-546 is a professional-grade 44-inch large format printer designed for high-quality color printing. Ideal for photographers, designers, and commercial printing businesses, this printer delivers exceptional detail and vibrant colors with precision and reliability. With a 12-color ink system, it produces stunning images on a variety of media types, including roll paper and cut sheets, making it perfect for posters, banners, fine art prints, and more. This printer supports borderless printing across multiple sizes, from B2 up to 44 inches, and even allows free-size borderless printing on roll paper. Its high resolution of 2400 x 1200 dpi ensures crisp and sharp output, while the print speed ranges from 2 min 49 sec for Heavyweight Coated Paper A0 to 5 min 35 sec for Glossy Photo Paper A0, offering efficiency without compromising quality. The PRO-546 comes with a 3GB standard memory and a 500GB encrypted hard disk to manage large print jobs smoothly. Connectivity options include USB, LAN, and Wi-Fi, allowing seamless integration into modern office and studio environments. Energy-efficient operation keeps power consumption low, with only 85W during printing, 1.7W in sleep mode, and 0.1W when powered off. Built with durability in mind, the printer’s dimensions are 1,593 × 734 × 628 mm (main unit) and it weighs approximately 106 kg, ensuring stability during operation. With a 1-year limited warranty, the Canon imagePROGRAF PRO-546 is a reliable choice for professionals seeking precision, versatility, and outstanding print quality for large format applications.
Canon imagePROGRAF PRO-546 Features
The Canon imagePROGRAF PRO-546 44-inch Single Function Large Format Printer is engineered for professional printing with unmatched precision and versatility. Here are its key features:
- High-Quality 12-Color Printing: Produces vivid, detailed prints with exceptional color accuracy, suitable for posters, banners, and fine art.
- Wide Media Compatibility: Supports roll and cut sheet paper with widths from 152.4 mm to 1,118 mm and thickness of 0.07–0.8 mm, enabling flexible printing on various materials.
- Fast Print Speed: Achieves A0 size prints in 2 min 49 sec on Heavyweight Coated Paper and 5 min 35 sec on Glossy Photo Paper, ensuring efficiency for large-scale projects.
- High Resolution Output: Offers 2400 x 1200 dpi print resolution, delivering sharp details and professional-grade print quality.
- Extensive Borderless Printing: Supports borderless prints on roll paper up to 44 inches and user-defined free-size printing for creative freedom.
- Robust Technical Specs: Equipped with 3GB standard memory and a 500GB encrypted hard disk, handling large files and complex print jobs with ease.
- Flexible Connectivity & Energy Efficiency: Features USB, LAN, and Wi-Fi connections for seamless workflow integration and low power consumption (85W printing, 1.7W sleep, 0.1W off).
With its reliable performance, versatile media handling, and professional-grade print quality, the Canon imagePROGRAF PRO-546 is the ideal solution for businesses, studios, and creative professionals requiring large-format printing with precision and efficiency.
