| Basic Information |
| BIOS | 1 x 32 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel H81 Express Chipset |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Supported CPU | Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU |
| Connector & Ports |
| HDMI | HDMI |

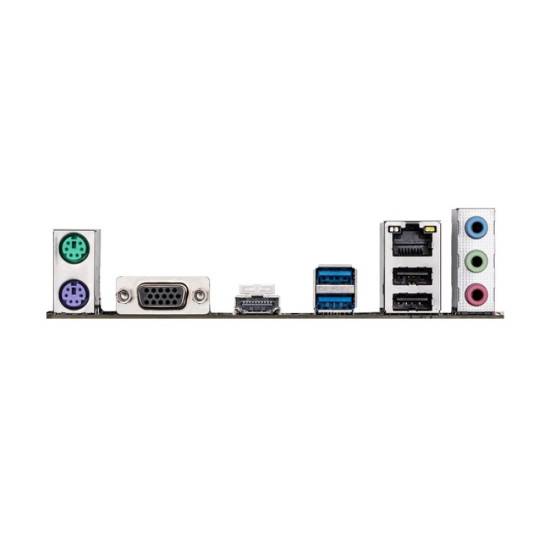

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3) |
| USB (s) | Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| VGA | 1 x VGA |
| Expansion Slots |
| M.2/SSD Expansion Slot | 1 x M.2 (M key) type 2280 support SATA and PCIe 2.0 x4/x2 SSD |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| Graphics |
| Graphics | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. |
| Graphics Memory | 1 GB |
| Memory |
| Maximum Memory | 16 GB |
| Slots | 2 x 1.5V DIMM sockets |
| Supported Memory | Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR 3 |
| Warranty |
| Warranty | 3 Years |

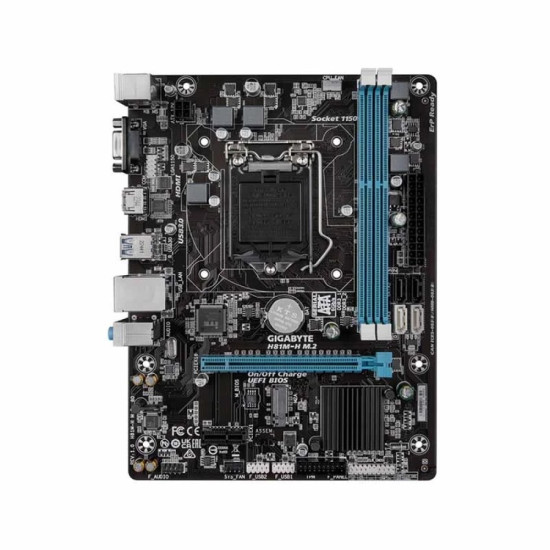

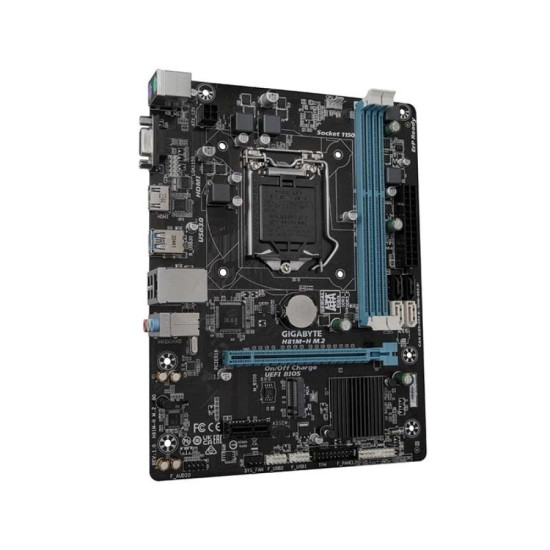

Gigabyte GA-H81M-H M.2 DDR3 Intel Motherboard
Gigabyte GA-H81M-H M.2 DDR3 Intel Motherboard is a reliable and cost-effective option for building or upgrading a desktop PC. Designed to support Intel's 4th generation Core processors, this micro-ATX motherboard is ideal for everyday computing tasks and light gaming. One of the key features of the GA-H81M-H is its support for DDR3 memory, which allows for up to 16GB of RAM. While DDR3 is not as advanced as newer DDR4 or DDR5 standards, it is still adequate for many users, providing good performance for general applications, web browsing, and media consumption. A standout feature of this motherboard is the inclusion of an M.2 slot. This allows users to install high-speed M.2 SSDs, significantly improving boot times and overall system responsiveness. This addition is particularly beneficial for those looking to upgrade an older system with faster storage options. The GA-H81M-H offers a variety of connectivity options, including USB 3.0 ports for faster data transfer, multiple SATA connectors for additional storage devices, and PCIe slots for expansion cards. The inclusion of both HDMI and DVI-D ports provides flexibility for different display configurations, making it easy to set up dual monitors or connect to various display devices. The motherboard’s design focuses on durability and reliability. Gigabyte has implemented high-quality components and features like solid capacitors and a humidity protection coating to ensure longevity and stable performance. The audio quality on the GA-H81M-H is decent, featuring high-definition audio support, which is sufficient for most general use cases, including watching videos, listening to music, and casual gaming. Overall, the Gigabyte GA-H81M-H M.2 DDR3 Intel Motherboard is a solid choice for users seeking a budget-friendly and dependable motherboard. Its support for DDR3 memory, inclusion of an M.2 slot, and versatile connectivity options make it a practical option for building or upgrading a functional and efficient desktop PC.
