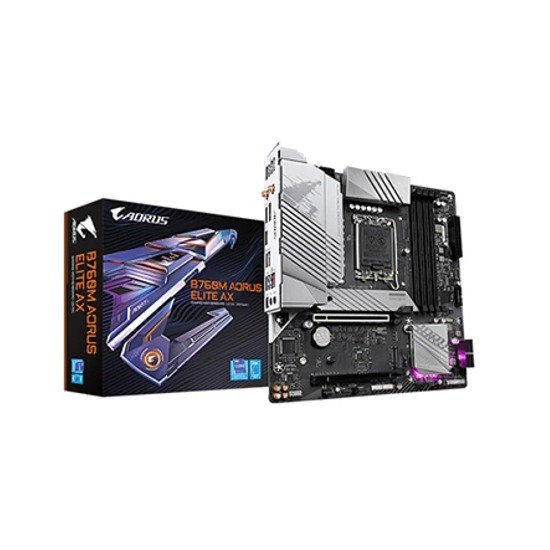

Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

Name: Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard
Brand: Gigabyte
Price: 23500.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M AORUS ELITE AX
MPN: smart

Based on 1 reviews. - Write a review

23,500৳

Ex Tax: 23,500৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU 12th 13th Gen Intel Processors LGA1700
- Supported RAM 4x DDR5 Max 128GB 7600OC
- Graphics Output 1x HDMI 1x DisplayPort
- Features Realtek 2.5GbE LAN chip Intel Wi-Fi 6E AX211

View more details

Key Features
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Basic Information
Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Memory Specifications
Type	DDR5
Slots	4 x DDR DIMM
Supported Memory	DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity)
Chipset
Chipset	Intel® B760 Express Chipset
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Input Devices
Expansion Slot	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Motherboard
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Connector & Ports
USB (s)	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Wireless Communication module	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit

Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

The Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard is a premium Micro-ATX solution designed for high-performance gaming, content creation, and advanced multitasking. Built on Intel’s B760 chipset, this motherboard fully supports both 12th and 13th Gen Intel Core processors, ensuring excellent upgrade flexibility and long-term value. Its robust power delivery system with an advanced digital VRM design delivers stable and efficient performance, even under heavy workloads or extended gaming sessions. This motherboard supports DDR5 high-speed memory, allowing users to experience faster bandwidth, improved responsiveness, and enhanced system efficiency compared to previous generations. The PCIe 4.0 x16 slot ensures compatibility with modern graphics cards, while multiple M.2 slots with thermal guards provide ultra-fast NVMe SSD performance without throttling. For connectivity, the onboard Wi-Fi 6E and Bluetooth offer low-latency wireless performance, making it ideal for online gaming and seamless device pairing. The Gigabyte B760M AORUS ELITE AX also features high-quality audio capacitors and reinforced PCIe slots for durability. Its optimized thermal design includes enlarged heatsinks and smart fan headers, helping maintain consistent temperatures during demanding tasks. With a sleek AORUS design, RGB support, and user-friendly BIOS, this motherboard is perfect for users seeking a balance of power, reliability, and modern features in a compact form factor.

Advanced key features of Gigabyte B760M AORUS ELITE AX 13th and 12th Gen Motherboard

This motherboard is engineered to deliver cutting-edge performance, reliable power efficiency, and next-generation connectivity. It is ideal for gamers, professionals, and PC builders looking for future-ready hardware in a compact design.

Key Features & Special Benefits

Supports Intel 12th & 13th Gen processors on LGA 1700 socket
DDR5 memory support for faster speeds and improved multitasking
PCIe 4.0 x16 slot for high-end graphics cards
Dual M.2 NVMe slots with thermal guards for faster storage
Built-in Wi-Fi 6E & Bluetooth for ultra-fast wireless connectivity
Advanced digital VRM & enhanced power phases for stability
Smart fan technology and optimized thermal design
Premium AORUS build quality with RGB customization support

Buying Guideline

Ideal for gaming PCs, workstations, and future upgrades
Choose DDR5 RAM to unlock full performance potential
Suitable for compact Micro-ATX builds with powerful components

To explore more premium options from the Intel 12th Gen Motherboard Series, browse our complete 12th gen motherboard collection at Speedtech, where you’ll find authentic products, competitive pricing, and reliable after-sales support.
