| Category |
6 |
| Cable Type |
U/UTP (Unshielded) |
| Conductor |
23AWG, Solid Bare Copper |
| Insulation |
HDPE |
| Pairs Quantity |
4 |
| Outer Sheath |
CM, CMR, LSZH, PE, PVC |
| Outer Diameter |
6.3±0.3mm, LSZH
5.6±0.3mm (CMP)
|
| Operating Temperature Range |
– 20°C ~+60°C |
| Standard Compliance |
ISO/IEC 11801
ANSI/TIA.EIA-568.2-D
IEC 61156-5
EN 50399
EN 50173-1
|

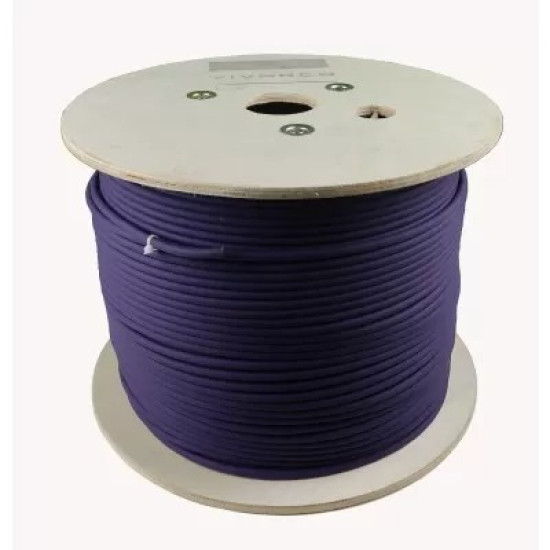

VIVANCO CAT 6 U/UTP CABLE, UNSHIELDED LSZH
VIVANCO CAT 6 U/UTP Cable, Unshielded LSZH is a high-quality cable designed for various applications, including data transmission, audio communication, and video signaling. This cable uses 23 AWG solid bare copper conductors, providing excellent signal integrity and low signal loss. The HDPE insulation ensures durability and resistance to environmental factors, while the LSZH outer sheath offers protection against moisture and high temperatures. The cable has a pairs quantity of 4, with an outer diameter of 6.3±0.3mm and 5.6±0.3mm for the CMP version. The operating temperature range is -20°C to +60°C, ensuring compatibility in various environments. The cable meets various standards, including ISO/IEC 11801, ANSI/TIA.EIA-568.2-D, IEC 61156-5, and EN 50399. The VIVANCO CAT 6 U/UTP Cable, Unshielded LSZH is suitable for use in both indoor and outdoor applications, including telecommunication networks, data centers, and industrial environments. Its high-quality materials and design ensure reliable performance and long-term durability. With its versatility and reliability, this cable is an excellent choice for any application requiring high-speed data transmission or audio/video signaling.
