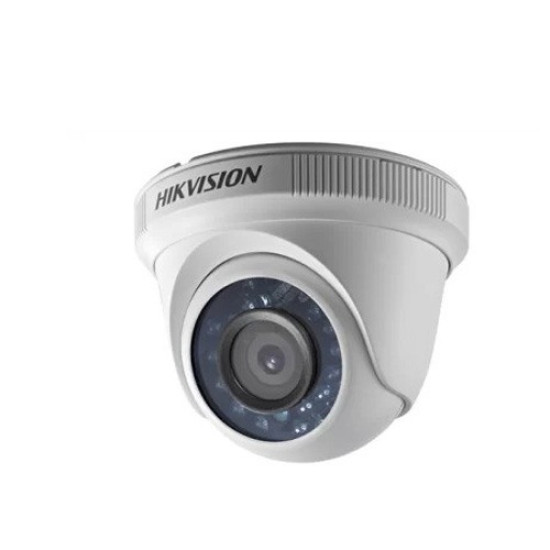

HikVision DS-2CE56D0T-IRF HD1080P Outdoor IR Turret CC Camera
The Hikvision DS-2CE56D0T-IRF HD1080P Outdoor IR Turret CC Camera is a robust and advanced surveillance solution designed for outdoor security applications. With dimensions of Φ 89.9 × 70.1 mm (3.54″ × 2.76″), this turret-style camera is compact, making it discreet yet highly effective in monitoring outdoor spaces. Operating seamlessly in a wide temperature range from -40 °C to 60 °C (-40 °F to 140 °F) and with a humidity tolerance of 90% or less (non-condensation), this camera excels in diverse environmental conditions. Its durable construction ensures reliable performance even in challenging climates. Equipped with a 2 MP CMOS image sensor, the camera delivers high-resolution images with electronic shutter speeds ranging from 1/25 s to 1/50,000 s (PAL) and 1/30 s to 1/50,000 s (NTSC). The minimum illumination of 0.01Lux @ (F2.0, AGC ON), coupled with the IR cut filter and auto-switching capability, ensures clear and detailed footage even in low-light conditions. The camera offers versatile lens options, including 2.8 mm, 3.6 mm, and 6 mm, allowing users to customize their field of view according to specific monitoring requirements. With a maximum IR range of up to 20m and a switchable TVI/AHD/CVI/CVBS video output, this camera ensures flexibility and compatibility with various surveillance systems. Additional features include Image Parameters Switch (STD/HIGH-SAT) for enhanced image customization, as well as image settings such as Brightness, Sharpness, and Smart IR. The Pan, Tilt, and Rotation capabilities provide a wide angle of view, enhancing the coverage area. With a power supply requirement of 12 VDC ± 25% and a maximum power consumption of 3 W, the camera is energy-efficient, making it suitable for continuous outdoor surveillance. Weighing 280 g (0.62 lb.), it is lightweight, facilitating easy installation in various outdoor settings. The Hikvision DS-2CE56D0T-IRF HD1080P Outdoor IR Turret CC Camera combines advanced imaging technology, durability, and versatility. Whether monitoring outdoor premises, entrances, or perimeters, this camera offers high-definition surveillance with customizable features, making it an excellent choice for those seeking reliable outdoor security solutions.
HikVision DS-2CE56D0T-IRF HD1080P Outdoor IR Turret CC Camera Features
- Advanced Imaging Technology: Equipped with a high-performance 2 MP CMOS image sensor, this camera provides crisp and clear images with a resolution of 1920 (H) × 1080 (V). The electronic shutter speed, ranging from 1/25 s to 1/50,000 s (PAL) and 1/30 s to 1/50,000 s (NTSC), ensures optimal image capture in varying lighting conditions.
- Wide Range of Lens Options: The camera offers a selection of focal lengths, including 2.8 mm, 3.6 mm, and 6 mm, providing users with flexibility in customizing their field of view. The horizontal FOV ranges from 101° to 51.9°, catering to diverse monitoring requirements.
- Versatile Mount Type: With an M12 mount type, the camera supports easy lens adjustments, enhancing user convenience during installation and setup.
- Pan, Tilt, and Rotation Capabilities: The camera supports a wide range of movement, allowing Pan: 0 to 360°, Tilt: 0 to 75°, and Rotation: 0 to 360°. This flexibility provides a comprehensive coverage area for effective surveillance.
- Powerful Infrared Night Vision: The camera features an IR cut filter with auto-switching capability for seamless day-to-night transition. With an impressive IR range of up to 20m, it ensures visibility in complete darkness, making it ideal for 24/7 outdoor monitoring.
- Energy-Efficient Design: Operating on a 12 VDC ± 25% power supply, the camera is energy-efficient with a maximum power consumption of 3 W. This design makes it suitable for continuous outdoor surveillance without substantial power requirements.
- Durable Build for Outdoor Environments: Designed to withstand harsh outdoor conditions, the camera operates flawlessly in temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F) with a humidity tolerance of 90% or less (non-condensation). Its robust build ensures reliable performance in challenging climates.
- Customizable Image Parameters: The camera offers Image Parameters Switch (STD/HIGH-SAT) for adjusting image saturation, along with additional image settings such as Brightness, Sharpness, and Smart IR. These features empower users to optimize image quality according to specific preferences.
- Switchable Video Output: Supporting switchable TVI/AHD/CVI/CVBS video output, the camera ensures compatibility with a variety of surveillance systems, providing users with flexibility in their choice of monitoring equipment.
In summary, the Hikvision DS-2CE56D0T-IRF HD1080P Outdoor IR Turret CC Camera combines cutting-edge imaging technology with durable construction and versatile features. Whether it's monitoring entrances, perimeters, or outdoor spaces, this camera offers reliable and high-definition surveillance for enhanced security.
